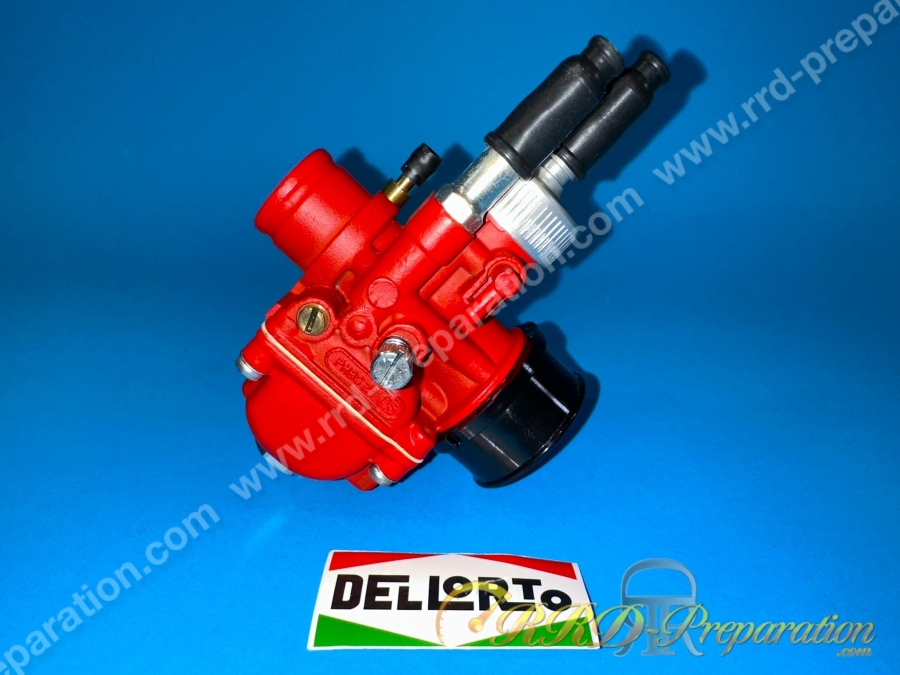

This DELLORTO Ø21mm PHBG DS Racing RED Edition carburetor is a PHBG carburettor revised and corrected by the Italian technicians of the great DELLORTO brand in order to always obtain more performance as well as a simpler and very efficient adjustment. No difference with the Black Edition in terms of parameters and performance, only the look changes with a slightly higher price!
For example, the disassembly of the plug / spring / needle is no longer done by a cover with two screws but by an unscrewable aluminum cap and the nozzle can be disassembled without removing the tank simply thanks to the tank cap! This carburetor is of very good design and quality, specifically designed to guarantee you more performance and simplicity in the minupulation of the latter.
The needle, float, plug ... remain identical to the normal PHBG. The alloy is of better quality, the machining also allows less rebounds of better performances by its micro scoring and shape of grip! We will regret the lack of finishing and polishing on the air filter side.
Clearly, it is an excellent carburettor genuinely well manufactured and designed for simple adjustments, good performance, low consumption all in a racing aesthetic with its bright red color. It is a carburetor widely used in competition, in endurance or on the road thanks to these various possible and simple adjustments, the low price of these parts, its low consumption, the ease of finding repair parts and adjustments, its racing aesthetic. .. A first choice piece!
Features and equipment fitted to this carburetor :
-Main jet DELLORTO INC 92 (small step)
- Needle: type W 7
-Cutting bushel: 40 degree
-Size 60 choke nozzle
- Idle jet size 50
- AU type needle well in size 262
-The choke is cable and the carburetor is male.
-Float 4 grams
-Outside diameter pipe side : 25mm
- Outside diameter on the filter side : air 32 without cover, and 40 with the supplied tulip cover (mounting this tulip is also strongly recommended).
-Starter : cable (possibility to switch it to lever)
-Possibility of vacuum valve : yes but not compulsory (delivered with shutter)
-Separate greasing : yes but not compulsory (delivered with shutter)
