Certified DELLORTO INC! Choose real DELLORTO quality!

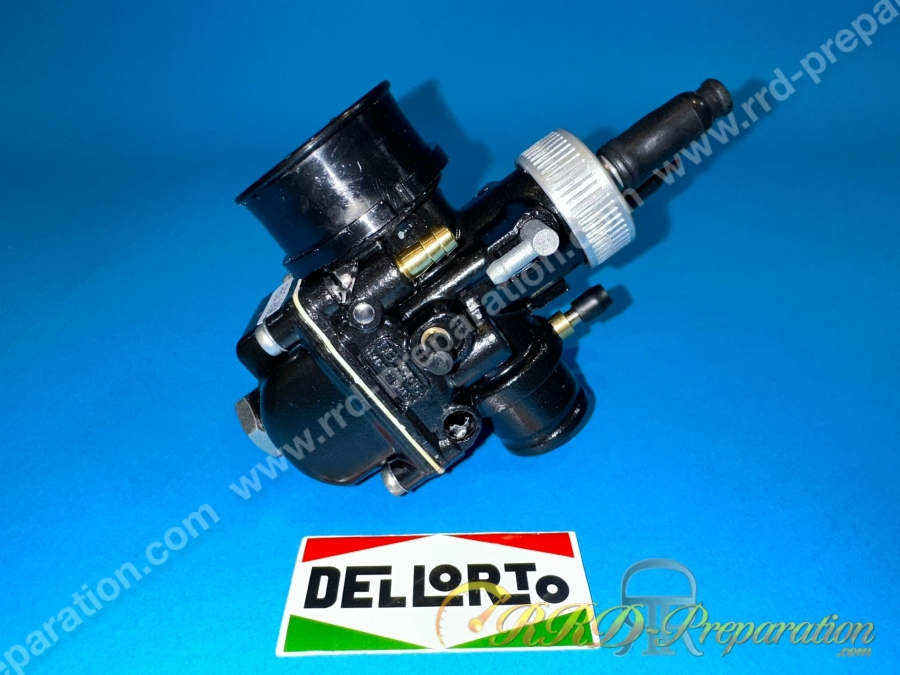

The DELLORTO Ø21mm PHBG DS racing black edition carburettor is a PHBG carburettor revised and corrected by the Italian Dellorto technicians in order to obtain even better performance as well as a simpler adjustment. For example, the needle is no longer disassembled with 2 screws but with an aluminum cap that can be unscrewed at the top and the nozzle can be disassembled without removing the tank, simply by removing the aluminum tank cap! This carburetor is of very good design and quality.
The needle, float, plug… remain identical to the normal PHBG. The alloy is of better quality, the machining also allows less rebounds of better performances by its micro scoring and shape of grip! We will regret the lack of finishing and polishing on the air filter side. The tank is it obviously in aluminum. The Ø21mm has the same body as the Ø19mm.
Material type :
-Dellorto primary jet of 92 in small steps
- Needle: type W 7
-Cutting bushel: 40 degree
-Size 60 choke nozzle
-Size 50 idle jet
- AN type needle well in size 262
-The choke is cable and the carburetor is male.
- float 4 grams
-Outside diameter pipe side : 25mm
-Outside diameter filter side : air 31 without cover, and 40 with the supplied tulip cover (mounting this tulip is also recommended).
In short it is an excellent carburettor well manufactured and thought for simple adjustments, good performance, low consumption all in a racing aesthetic. It is a carburetor widely used in competition, in endurance, on the road thanks to these various possible and simple settings, the low price of these parts, its low consumption, the ease of finding repair parts and adjustments, its racing aesthetic. ..
-Starter : cable (possibility to switch it to lever)
-Possibility of vacuum valve : yes but not compulsory (delivered with shutter)
-Separate greasing : yes but not compulsory (delivered with shutter)
