Reference: 040621476
cylinder head high compression for kit AIRSAL sports Ø47,6mm 70cc PIAGGIO Liquid
To support or repair your AIRSAL mono-segment kits or other.
Banner
Attention parts only reserved for the competition, prohibited on road!
Here is the best value kits 70cc aluminum market. This is the AIRSAL Sport 70cc Ø47,6mm. This cylinder low price does not neglect the quality, 47,6mm diameter high-end aluminum. It has 5 transfers of admission and an exhaust with bar. This cylinder is between the kit 70 cc AIRSAL luxury and 70cc AIRSAL T6 power baths.
Charts are pretty high at admission and low enough to escape making the torquey and not difficult to follow or set. The piston is a mono-segment model with side grease! Clearly this kit has a very good ratio torque / power, it offers plenty of performance while preserving a great strength!
The piston is mono-segment model with chrome domed segment hard, it has side oilers and a light preparation on the rear apron to improve scanning. The finish is really on top.
We advise you to align transfers to lower casings engine.
The cylinder head is a high-compression chamber is incoming to have good alignment chamber / cylinder is a good performance head gaskets.
The room is a polished hemispheric model. This cylinder head allows you to reconnect if desired antifreeze on your carburetor. It will certainly be less effective than MALOSSI MHR, BIDALOT or Polini ... But there will already very good.
We recommend to accompany this kit with: carburation 19mm (carbon flaps slats 0.30mm or 0.35mm), crankshaft and reinforced bearings, exhaust racing, candle racing ...

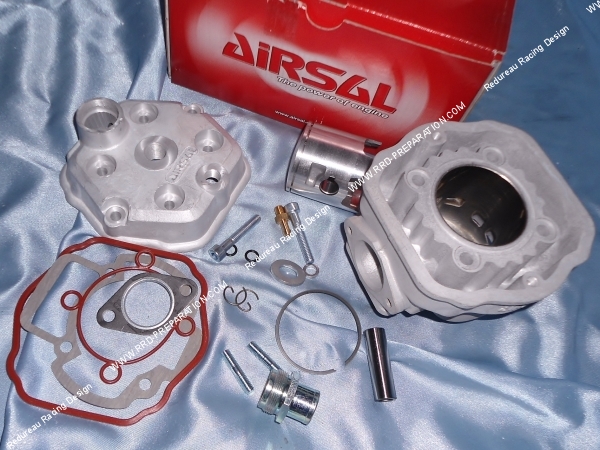

Delivered with :
X1 cylinder head
X1 aluminum cylinder
X1 piston
X1 segment
X2 exhaust stud
X1 complete seal pouch
X1 piston axis
X2 clips
...
Optional we offer a preparation course 1, this preparation is a modification of the channels and the exhaust port by increasing the charts and improvement of the duct, it increases the cylinder performance. Improved piston and bottom skirt is also included in the amendment. Allow a little extra time for this preparation!
Mounts on PIAGGIO liquid 50cc 2 stroke:
Aprilia SR
ARPILIA SR R
Derbi GP1
Derbi GPI OPEN
GILERA DNA
GILERA RUNNER SP before 2005
GILERA RUNNER SP after 2006
GILERA RUNNER
PIAGGIO NRG EXTREME
Piaggio NRG MC2 before 1997
Piaggio NRG MC2 after 1998
Piaggio NRG
Piaggio NRG MC3 DD
PIAGGIO NTT
Piaggio NRG Power DD
PIAGGIO QUARTZ
Piaggio Zip SP after 2001
PIAGGIO ZIP SP before 2000
And other models ...
