Kit 70cc Ø48mm TOP PERFORMANCES cast iron "BLACK TROPHY" 6 transfers motor scooter PIAGGIO / GILERA Liquid (NRG, RUNNER ...)

Attention, parts only reserved for the competition, prohibited on the road!

A fairly powerful cast kit after the Top Performance "DUE PLUS" for PIAGGIO / GILERA motor scooter, it is a minacrom cast iron cylinder. This kit has 6 transfers including 4 opposite and two are placed later to optimize the filling of the admission.



The exhaust is normal (oval) and the bi-segment piston is high-grade silicon with a reinforced alloy. This kit is relatively torquey, powerful and solid, some up to 25,000 Kms with this type of kit by changing the piston every 10,000 Kms without even a reborage. Level tip is also very impressive.



You can also do a lot of kms because it is very solid (it's the magic of minacrom cast iron) and you can bore it cheaply in 48.5mm diameter (we have all the spare parts).



The combustion chamber of its cylinder head is in high compression studied and hemispherical with polished finish. Delivered as presented.



We recommend to mount it at least with: racing exhaust, cold racing candle, carburettor 17,5mm, reinforced bearings and crankshaft as well as racing variator.

Bore: 48mm
Displacement: 71cc in race 39,3mm
Compression Ratio: 1: 12.3

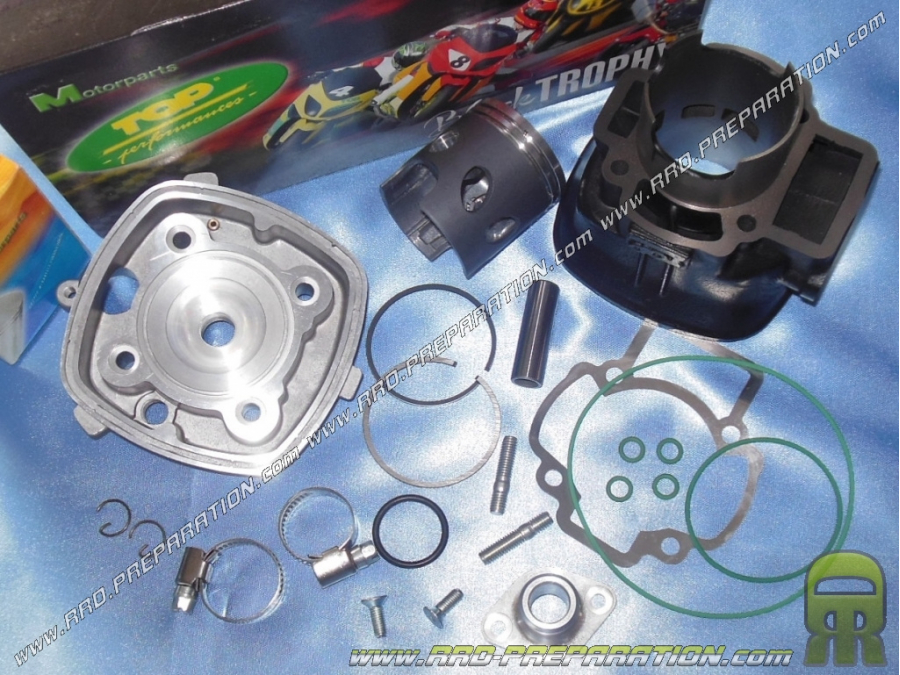

The pack contains:
-piston d.48mm reinforced bi segments d.48mm
-2 segments reinforced hard chrome
-treated reinforced piston axis Ø12 X 40mm
-referred piston cleats
-cylinder minacrom cast iron 6 transfers normal exhaust
-pack complete seal
-pack necklace / bolts-head d.48mm high compression chamber polished
-Notice-sticker



Optionally we offer a stage 1 preparation, this preparation is a modification of the channels and exhaust light by increasing the diagrams and improving the pipe, it increases the performance of the cylinder. An improvement of the piston and skirt stocking is also included in this modification. Allow a little extra time for this preparation!

Installs on motor scooter PIAGGIO / GILERA Liquid 50cc 2 times:

APRILIA SR (carb) 50 2T LC 2004 (PIAGGIO engine)
ARPILIA SR R (carb) 50 2T LC (PIAGGIO engine)

DERBI GP1 50 2T LC
DERBI GP1 OPEN 50 2T LC
DERBI GP1 REVOLUTION 50 2T LC

GILERA DNA 50 2T LC
GILERA RUNNER SP 50 2T LC before 2005
GILERA RUNNER SP (carb) 50 2T LC after 2006 (C451M)
GILERA RUNNER 50 2T LC

PIAGGIO NRG EXTREME 50 2T LC
PIAGGIO NRG MC2 50 2T LC before 1997
PIAGGIO NRG MC2 50 2T LC after 1998
PIAGGIO NRG 50 2T LC
PIAGGIO NRG MC3 DD 50 2T LC
PIAGGIO NTT 50 2T LC
PIAGGIO NRG Power DD 50 2T LC
PIAGGIO QUARTZ 50 2T LC
PIAGGIO ZIP SP 50 2T LC after 2001
PIAGGIO ZIP SP 50 2T LC before 2000
PIAGGIO Zip sp2 50cc LC

And other models ...
