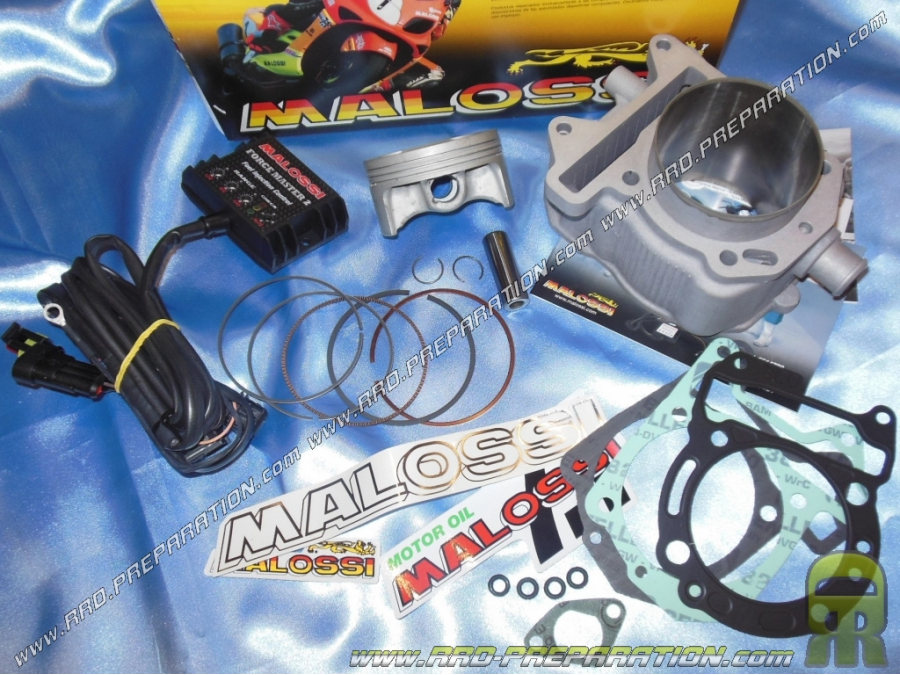

Always more performance and more strength ... Here is the big kit that will literally boost your maxi scooters 125cc APRILIA SR, GILERA NEXUS, PIAGGIO BEVERLY, PIAGGIO MP3 YOURBAN and VESPA GTS SUPER The famous kit Ø75,5mm which is in more delivered with the electronic multi-curve calculator As usual MALOSSI has made a powerful kit, solid, coupleux and very high-end.
This little monster will increase your engine from 125cc to 217.58cc real extreme performance. MALOSSI has for this thermal group found the perfect ratio race / diameter, this cylinder will be without problem supported by your crankshaft of origin.
It is already running in competition and endurance is therefore to say if it is tested ... Force Master 2 is the electronic box that allows to change the injection to fit perfectly to the new thermal group 4T Malossi. This box has been programmed with different programs to be perfectly matched to your vehicle, whatever its configuration! With these boxes 4 curves are offered to you ...
- Curve 1: best performance with the original cylinder
- Curve 2: Malossi cylinder and original exhaust
- Curve 3: Malossi cylinder and modified exhaust pipe
- Curve 4: Excluded electronics box
MALOSSI Technical Details
Cylinder
-Bore Ø 75.5 mm.
-Course 48.6 mm.
-Cylinder 217,58cc.
- Increased compression ratio.
-Material: primary aluminum alloy with a high content of tempered and tempered silicon, cylinder liner with application of silicon carbides in a galvanic nickel matrix and smoothing crossed by two diamond passages, with very strict tolerances.
-Usinage: by CNC machine tools with high precision.
-Cylinder piston couplings with coupling tolerance of 0.05 mm.
- Heat exchange surfaces recalculated and enlarged.
Piston
-Extra compact with three segments.
-Material: special aluminum alloy with high silicon content with low thermal expansion with application of tin on the sliding walls.
-Using machines
-Tools at CN
-Lightened and strengthened.
-Surfaces of heat exchange enlarged.
segments
-Special high sliding and very high mechanical resistance.
-I ° segment compression nitrided steel and chrome.
-II ° special cast iron segment.
-Segment scraper in three parts in special steel, chromed.
Electric case
-Adjusting the carburation.
- ± 20% at min / medium / max.
-Limiter of revolutions: + 1000.
-RPM 4 different programs.
Mounts on:
-APRILIA SR MAX 125 ie 4T LC euro 3
-GILERA NEXUS 125 ie 4T LC euro 3
-PIAGGIO BEVERLY 125 ie 4T LC euro 3 2010 (QUASAR)
-PIAGGIO MP3 YOURBAN 4V 125 ie 4T LC euro 3 2011
-VESPA Super GTS 125 ie 4T LC euro 3 (M455M)
