Kit 282cc MALOSSI Ø75.5mm, cylinder / piston for APRILIA ATLANC 250, GILERA NEXUS, PEUGEOT SATELIS, PIAGGIO BEVERLY ... 4T
  • Kit 282cc MALOSSI Ø75.5mm, cylinder / piston for APRILIA ATLANC 250, GILERA NEXUS, PEUGEOT SATELIS, PIAGGIO BEVERLY ... 4T

MALOSSI Ø75,5mm 282cc kit, cylinder / piston for APRILIA ATLANC 250, GILERA NEXUS, SATELIS PEUGEOT, PIAGGIO BEVERLY ... 4T

3113924

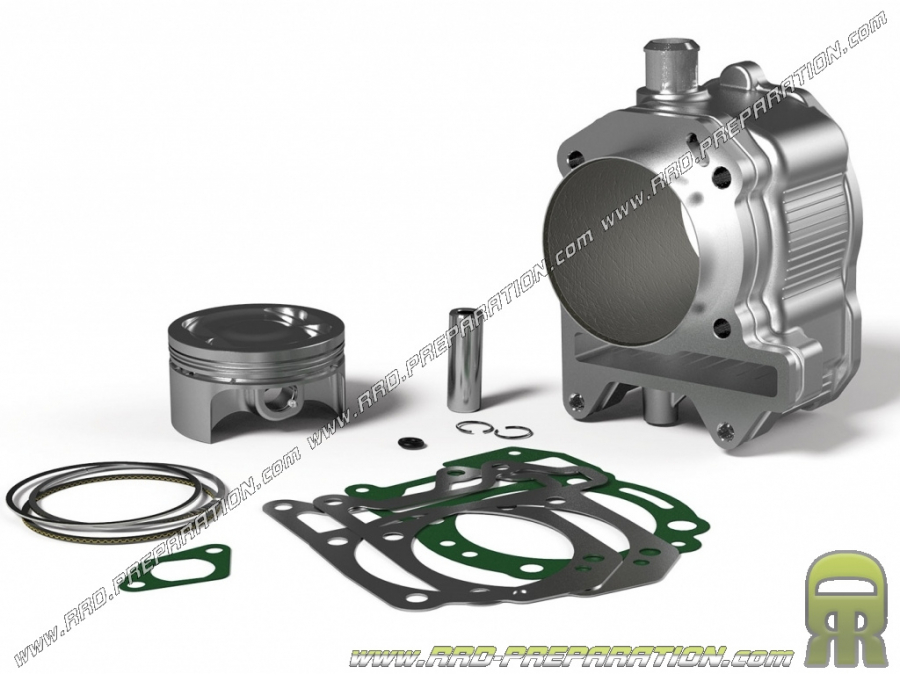

Kit cylinder, complete piston MALOSSI for maxi scooter 4T liquid cooling.

€314.99
Quantity
Shipping in 1-3 days

Description

Here is the kit without cylinder head from MALOSSI to increase the performance of your maxi scooter equipped with 4T liquid cooled engine.



Technical characteristics :



Cylinder


Material: aluminum alloy with a high content of tempered and tempered silicon, cylinder liner with application of silicon carbides in a galvanic nickel matrix and smoothing crossed by two diamond passages, with very strict tolerances.
Machining: CNC machine tools with high precision.
Cylinder-piston couplings with coupling tolerance of 0.05 mm.
Heat exchange surfaces recalculated and enlarged.




Piston


Extra compact with three segments.
Material: Special aluminum alloy with high silicon content at low thermal expansion with application of tin on the sliding walls.
Machine tool machining at CN
Lightened and strengthened.
Expanded heat exchange surfaces.




segments


Compression - special high sliding and very high mechanical resistance, made of chromed S10 spheroidal cast iron.
1st scraper segment - S10 spheroidal cast iron chromed.
2nd scraper ring - three-piece made of special steel, chrome-plated.



Products strictly reserved for the competition in places provided for and according to the provisions of the competent sports authorities. We disclaim all liability for improper use.



Mounts on :



ATLANTIC APRILIA - Arrecife 250 4T LC (PIAGGIO M237M)
APRILIA SCARABEO 250 4T LC (PIAGGIO M285M)
APRILIA SCARABEO Light 250 ie 4T LC 2007->
APRILIA SPORTCITY 250 ie 4T LC euro 3 (PIAGGIO M288M)


BENELLI BENELLI ADIVA AD 250 4T LC euro 2


DERBI DERBI GP1 250 4T LC euro 2-3
DERBI DERBI RAMBLA 250 ie 4T LC euro 3


GILERA GILERA NEXUS 250 ie 4T LC euro 3


MALAGUTI MALAGUTI MADISON RS 250 4T LC (PIAGGIO M237M)
MALAGUTI MALAGUTI MADISON 3,250 4T LC (PIAGGIO)
MALAGUTI MALAGUTI PHANTOM MAX 250 4T LC (PIAGGIO M361M)


PEUGEOT PEUGEOT GEOPOLIS 250 ie 4T LC euro 3
PEUGEOT PEUGEOT SATELIS 250 4T LC euro 3


PIAGGIO PIAGGIO BEVERLY 250 4T LC Euro 1-2 (M285M)
PIAGGIO PIAGGIO BEVERLY S 250 ie 4T LC euro 3
PIAGGIO PIAGGIO BEVERLY 250 ie 4T LC euro 3
PIAGGIO PIAGGIO MP3 250 ie 4T LC euro 3 (QUASAR M472M)
PIAGGIO PIAGGIO X7 250 ie 4T LC euro 3 (QUASAR M622M)
PIAGGIO PIAGGIO X8 250 4T LC euro 2
PIAGGIO PIAGGIO X8 250 ie 4T LC euro 3 (QUASAR)
Piaggio Piaggio X9 Evolution 250 4T LC (M237M)
PIAGGIO PIAGGIO XEvo 250 ie 4T LC euro 3 (QUASAR)


VESPA VESPA GTS 250 ie 4T LC
Vespa Vespa GTV 250 ie 4T LC

Product Details
3113924
20 Items
New product
