For quality reasons! We do not sell this engine with the first price original type ignition, we impose the assembly of a MVT PREMIUM!!!

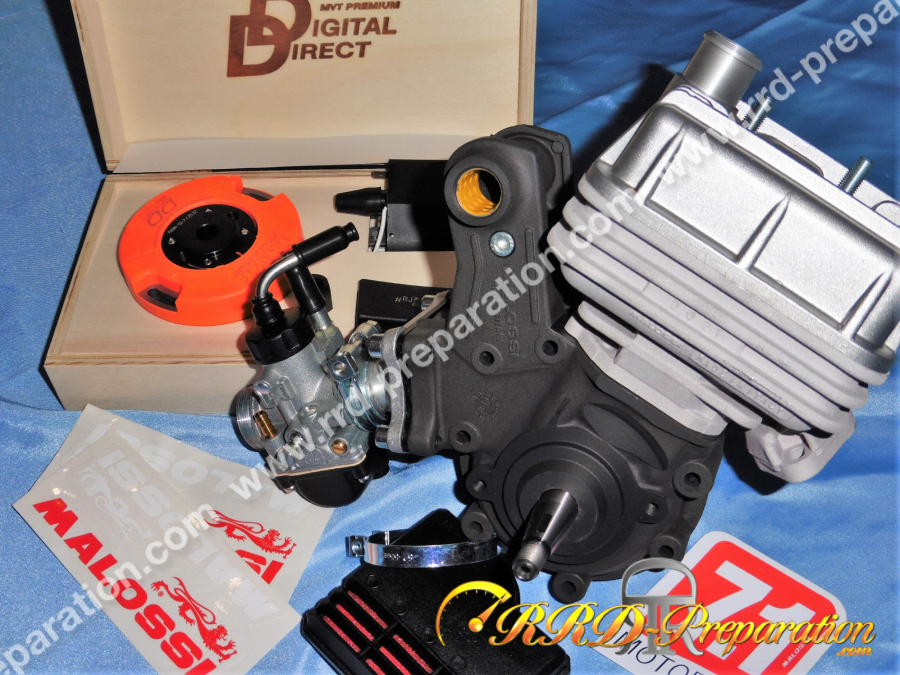

This engine for PEUGEOT 103 liquid cooling offers more performance and reliability than the air version, liquid cooling allows more ignition advance, to run with a leaner and more explosive air / fuel ratio, and allows a rate of higher compression, this engine is complete and very well equipped, it has :
-Kit 70cc liquid-cooled aluminum with cylinder head, 6 transfers, two-segment MALOSSI
- Carters MALOSSI large valves built-in support
- Rigid 19mm intake pipe special MALOSSI housings
- MALOSSI VL6 valves
-Carburetor PHBG 19.5mm DELLORTO rigid pre-adjusted
-Specific MALOSSI air filter for SPX / RC X / MVX / CLIP
-Reinforced bearings C3 polyamide cage
- Crankshaft reinforced full ARTEK masses
- Crankcase screws, cylinder head, studs ... High quality
-Motor delivered as standard with a small paste to take up the mainspring of the SPX / RC X / MVX / CLIP, you can buy a DOPPLER mainspring in your basket, in this case, we mount the spring and remove the small paste!
The whole is equipped, assembled according to the rules of the art (squish, volumes, improvements in the greasing of the big end and connecting rod feet, etc.), and checked. To better support this complete engine, you can install the new POLINI exhaust or another model.
Clearly it is still evolving but already very powerful!!! If you want to install a decompressor, plan to buy it because the block comes with a plug!
Give it a good run-in for 400km, and gently put the power on while adjusting your variation to try to exploit the 9,000 to 10,500 rpm as much as possible over the entire climbing range. And check your carburetor settings. 100% synthetic oil MOTUL 800 ROAD strongly recommended, 3% during the break-in, and gradually reduce (from 200km) to 2.5% or even 2% (too much oil lowers the octane rate and therefore engine performance, too little risk of tightening and too rapid wear)!
As an option, we offer an engine preparation, it allows to operate a speed of around 10,000 rpm against 8,500 for the stock version. This preparation includes a modification of the diagram and the exhaust channel, a slight retouching to increase the admission diagrams (lateral), an improvement of the admission on the piston and the rear cylinder skirt, a general improvement of the piston. An improvement of the group pipe / valves. To be accompanied by a good motor / variator spring adjustment to exploit the 10,500 rpm!
*Delivered without anti parasite
*Delivered without spark plug, b8hs recommended for break-in and adjustments, br9hix recommended after break-in and adjustments!
*Delivered without dimmer, the ER3 doppler is a very good dimmer.
*Delivered without strap, plan a good quality strap like the DOPPLER
*Delivered without mainspring, the original Peugeot is fine, but a DOPPLER is a real plus!
* Delivered without exhaust, you can accompany the engine of a POLINI , DOPPLER or other
*If your original 103 is 6V, provide bulbs and a 12V voltage regulator to go with your MVT PREMIUM ignition
