Cheap and quality carburettor because it is between the TNT and the DELLORTO .

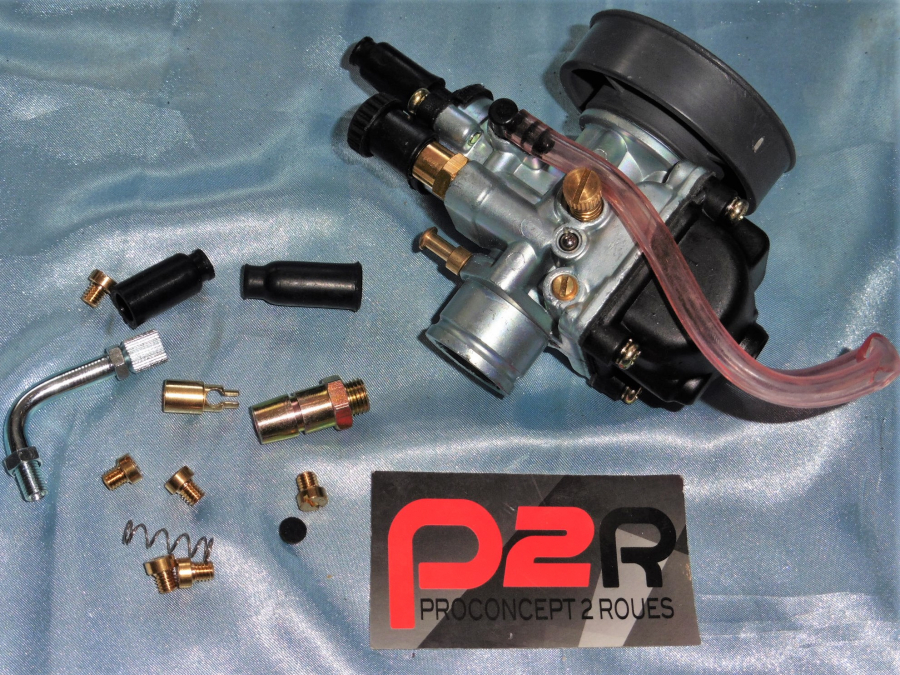

Here is the carburettor from P2R by YSN, model PHBG 19mm. Let's be clear, we won't lie to you about the quality of this carburetor. Nothing to do with TNT or DELLORTO , to tell the truth it is between the two… Surprising but nevertheless true, it has a clearly visible quality, felt during the test and a smooth and clean finish!
Some reproaches despite everything... non-certified parts (jets, needle, ...) and devoid of an increase tulip. Apart from that, we recommend it for those who use their 2 wheels every day. It has a multitude of adjustments: richness screw, idle jet, needle bushel, ... In flexible assembly with a cable choke, ... , precise and efficient, you will easily find spare parts.
Small details that make this carburettor a must for regular mechanics / adjustments. Clearly, here we have the perfect compromise between performance at a lower cost! However, think of a good cleaning, adjustments and assembly to obtain a satisfactory result. Delivered as presented, complete.
It is interesting to know that all DELLORTO parts fit on this carburettor.
Summary:
Starter: cable
Possibility of depression valve: yes
Separate lubrication: yes
Flexible assembly for sleeve or pipe Ø25mm double non-slip lip
Fixing the air filter: standard threaded Ø32mm for tulip or filter
Carburettor delivered with the following settings:
Small pitch main jet 72
Needle W16
40° cut bushel
Needle well 262AU
Idle jet 48
Choke jet 60
Reference: 466778
A carburetor that consumes little while fueling your engine well, and all at a low price!
Reference: 2522
The BS version on 19mm PHBG, flexible, lever choke! High quality certified!
Reference: 2695
The most racing version of the carburettor DELLORTO RACING BLACK EDITION, flexible, choke cable, possibility of separate greasing.
Reference: 467793
A carburetor much better than a TNT but less well finished than a DELLORTO, but it will still provide a good filling of your engine for a relatively low price.
Reference: 2577
The CS version of the DELLORTO PHBG Ø19.5mm. Excellent quality, with large diameter, rigid intake tulip, choke lever, with possibility of depression or separate lubrication!
Reference: 2575
An excellent version of the real PHBG RIGIDE DELLORTO 19mm, this CS has a large intake tulip, a lever choke and a possibility of separate lubrication!
Reference: 201.1902
A very good high quality carburetor at low price, with separate lubrication and vacuum plugs! Choice of cable or lever choke!
Reference: 2506
The AS 1 version of the real DELLORTO carburettor PHBG, rigid, choke lever without separate lubrication or depression.
Reference: 2594
The most racing version after the black edition of the flexible 19mm PHBG! Aluminum tank with plug, inlet tulip ... Screw-on valve cover!
Reference: 201.1903
The best 19mm carburetor from POLINI and we can say about the whole market! An evolution version CP for maximum performance!
Reference: 2587
The AD version of the PHBG DELLORTO, rigid, choke lever and without separate lubrication or depression.
Reference: 1179
The DD version on PHVB 19mm, flexible, cable starter! High quality certified!
Reference: 473460
A good quality carburetor for its price which will fuel your engine well but which will not have as good a finish as a DELLORTO.
Reference: 517454
Replacement carburettor TUN'R 'R type PHBG DS for your motorcycle, scooter ...
Reference: 467791
Cheap and quality carburettor because it is located between TNT and DELLORTO.
Reference: 2523
The real DELLORTO PHBG in 18mm!
