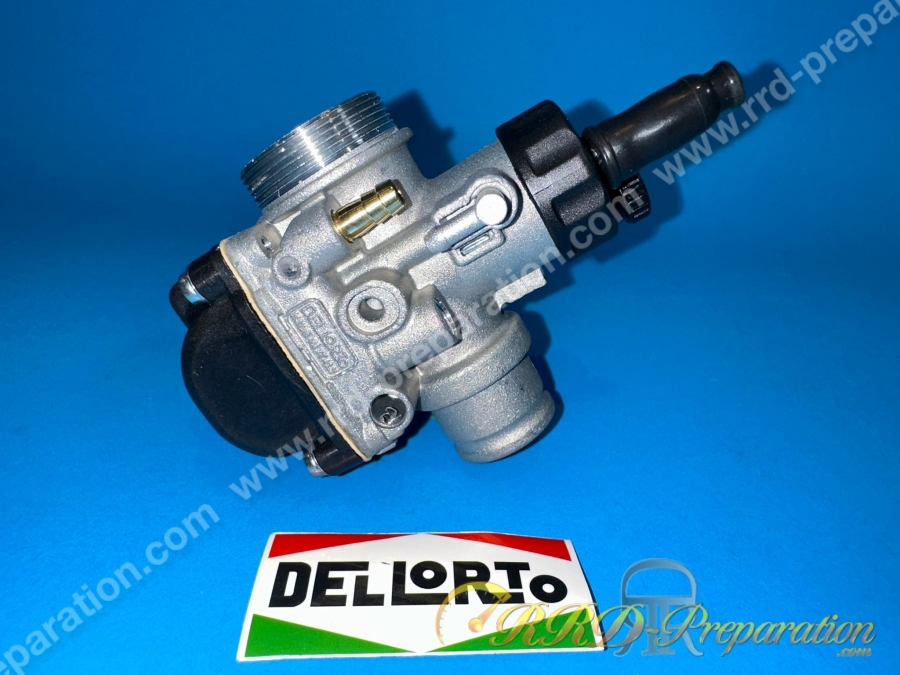

Carburettor DELLORTO PHBG 19 BS choke lever, flexible, without separate greasing

Here is an ideal carburetor! It is of very good quality, not very expensive and well suited to small or large configurations, this PHBG BS model is a DELLORTO with lever choke (which you can switch to cable.

It does not have separate lubrication so you will have to mix it yourself! It is flexible mounting. You can mount it on the 103, 51, scooter, am6 and DERBI with original pipe ...

Its air filter attachment is in Ø31mm threaded, so you can put the cones and air box sleeve in Ø 30 to 32mm. You can also put an adaptation tulip to a larger diameter.

The carburetor now has a screw-on cover

Material type :

85 dellorto primary jet in small steps
Needle: type W07
Cutting bushel: 30 degrees
Choke jet size 60
Idle jet size 50
Needle well type AU in size 262
The choke has levers and the carburetor is male. (you can mount a cable starter ..)
float 4 grams
External diameter pipe side: 25mm
External diameter filter side: 31mm threaded air (possibility of adding a larger tulip)
