Warning, this part is not approved for use on public roads, it is intended for competition on circuits only, and does not comply with the 125cc engine displacement limit!
High quality, thanks to its MALOSSI brand whose quality is beyond question, as well as its design! Thanks to its 63mm diameter and its actual displacement of 182.58cc.

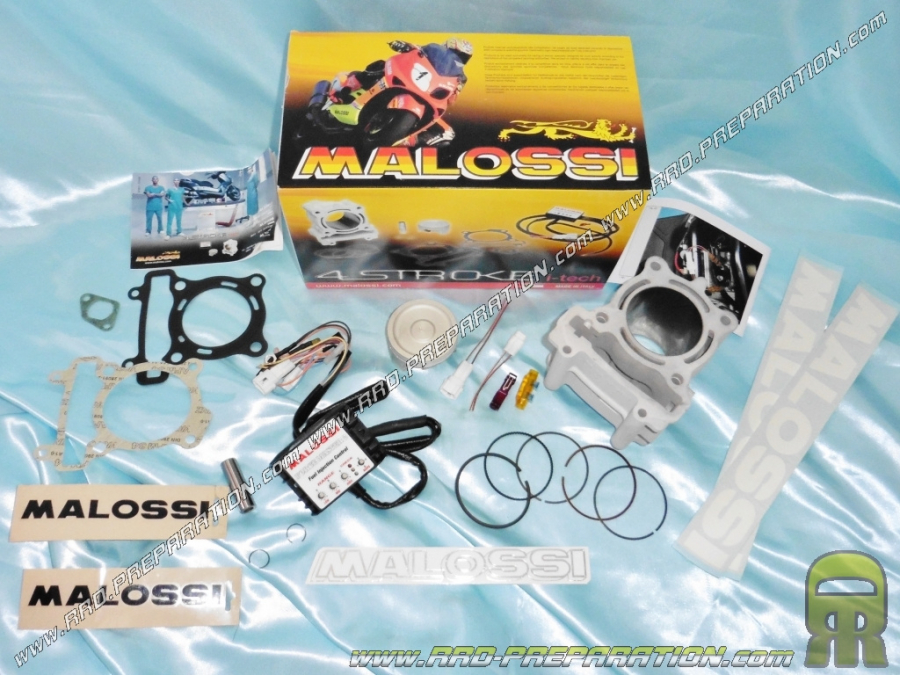

This competition kit will offer you high performance! Delivered 100% complete as shown. The cylinder is made of aluminum, the piston is extra compact with three rings, but also lighter and reinforced with enlarged heat exchange surfaces; the rings are specially designed for optimal resistance.
In short, this allows you to radically increase power with complete peace of mind, using high-quality equipment.Don't hesitate to download the official MALOSSI PDF, which explains everything you need to know about this kit, the electronic control unit, and more!
This kit is the same as the kit supplied with the electronic control unit.
MALOSSI description:
Cylinder 3114852
-Bore: Ø 63 mm -Stroke: 58.6 mm -Engine displacement: 182.58cc (actual) -Compression ratio: 10.6:1 -Material: primary aluminum alloy with high silicon content, hardened and tempered; cylinder liner with silicon carbide coating in a galvanic nickel matrix and cross-smoothed by two diamond passes, with very tight tolerances -Machining: using high-precision CN machine tools -Cylinder-piston couplings with a coupling tolerance of 0.05 mm -Recalculated and enlarged heat exchange surfaces
Piston
-Extra compact three-segment -Material: Special high-silicon aluminum alloy with low thermal expansion and tin plating on the sliding walls -Machining by CNC machine tools -Lighter and reinforced -Enlarged heat exchange surfaces
Segments
-Specials with high sliding speed and very high mechanical resistance -1° compression segment in nitrided and chrome-plated steel -II° special cast iron segment -Three-piece scraper segment made of special chrome-plated steel
Electronic Enclosure 5519529
-Carburetor adjustment - ± 20% at min/medium/max -Rev limiter: +1000 RPM -4 different programs
This kit can be installed on:
YAMAHA MT-125 ie 4T LC euro 5 2021->2024 (E32FE)
YAMAHA XSR 125 ie 4T LC euro 5 2022->
YAMAHA YZF-R 125 ie 4T LC euro 5 2021->2024 (E34LE)
!!!STARTING PRICE!!! A good big kit of very good quality and offering good performance on your MASH, SUZUKI GZ, GN, GS, DR, quad LTZ, BULLIT, HOOPER, VAST, SINNIS ... 125cc 4T air cooled motorcycles!
A good big kit of your good quality and offering good performance on your MASH, SUZUKI GZ, GN, GS, DR, quad LTZ, BULLIT, HOOPER, VAST, SINNIS ... 125cc 4T air cooled motorcycles! Nicasil treated aluminum, made in Italy, very high performance!
