High quality crankshaft in 39.1mm stroke for PEUGEOT 103, long connecting rod allowing the same displacement as the original crankshaft to be preserved by reducing the forcing on the connecting rod and the cylinder/piston group.

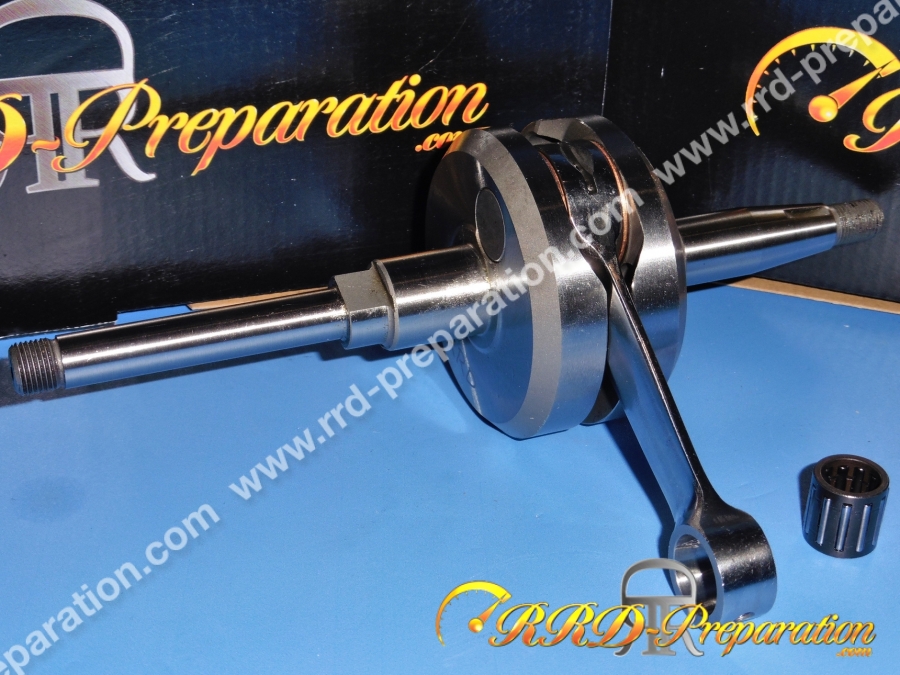

Reinforced RRD crankshaft 85mm long connecting rod for PEUGEOT 103 type SP, MVL, LM... Developed in our workshops, tested on our engines for many months. Built for us in Europe with care in the best steels with the best tempers. Designed to eliminate the problem of a connecting rod that is too short on the PEUGEOT engine (although the latter has a forward cylinder offset to reduce forcing). Allows to reduce the forcing on the connecting rod / the piston cylinder, to release the turns thanks to its elongated connecting rod from 76 to 85mm! Must be installed with a 9mm spacer and elongated dowels. Ideal on a sharp 50cc or even a sharp 70cc. Dynamically balanced on average pistons on the market between 40mm and 46mm (perfect balancing does not exist), it will also work very well on a PARMAKIT large diameter 50mm 77cc. You will not see external balancing plugs on our PEUGEOT 103 crankshafts for reasons of solidity following various tests and results, you can notice the balancing work by looking between the masses.
This crankshaft does not modify the engine displacement or the compression ratio.
*Very limited small series
Features :
Silks / diameter of crankshaft bearings: origin
Connecting rod: reinforced elongated from 76 to 85mm mounted on anti-friction wedge with reinforced cage, requires a 9mm thick wedge
Masses: Solid
Dynamic balancing: yes
Manufacture: Europe certified
Connecting Rod Cage: 12 X 16 X 16mm
Pin Ø 16mm
Reference: ESP.07.125.4
The strongest with MALOSSI, specially lengthened for high engines with wedges for stroke or long connecting rod, withstand extreme tightening torques. Amply support 25nm (2.25 mkg)!
Reference: rrd-cale-9mm-103
Special 10mm shim for long stroke crankshafts / RRD long connecting rods on PEUGEOT 103.
Reference: rrd-cale-9mm-103-parmakit
Special 9mm shim for large PARMAKIT Ø50mm air or liquid transfer cylinders with long stroke crankshafts / long RRD connecting rods on PEUGEOT 103.
Reference: RRD-BSL-103
For long connecting rod model crankshaft, reinforced top-of-the-range connecting rod for a reliable and solid lower engine.
Reference: 0653005509
Out of production !!!
Reference: rrd-42.1-103-SPX-BL-CM
Large masses version without chamfer, ultra solid, more inertia and better engine behavior!
Reference: 53 2593
Out of production!!!
Reference: rrd-42.1-103-SP
RRD long race competition crankshaft for PEUGEOT 103 type SP engines with electronic cone.
Reference: rrd-42.1-103-SPX-BL
Long race competition crankshaft and RRD long connecting rod for PEUGEOT 103 type SPX, MVX, RCX and CLIP engines!
Reference: rrd-39.1-103-SPX.BL
Reference: rrd-42.1-103-SP.BL-CM
Competition version with increased mass diameter and removal of the chamfer for more solidity, engine inertia, better engine behavior!
Reference: rrd-42.1-103-SP.BL
Long race competition crankshaft and RRD long connecting rod for PEUGEOT 103 type SP engines with electronic cone.
Reference: rrd-42.1-103-SPX
RRD long race competition crankshaft for PEUGEOT 103 type SPX, MVX, RCX and CLIP engines!
High quality crankshaft in 39.1mm stroke for PEUGEOT 103, long connecting rod allowing the same displacement as the original crankshaft to be preserved by reducing the forcing on the connecting rod and the cylinder/piston group.
