Reference: 484557
Ignition nut on crankshaft CGN original type for MINARELLI AM6 engine
Essential spare part in case of loss, wear ... of your old nut!
Banner

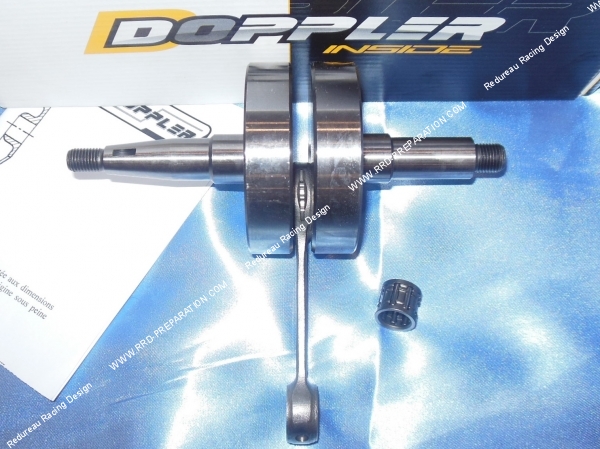

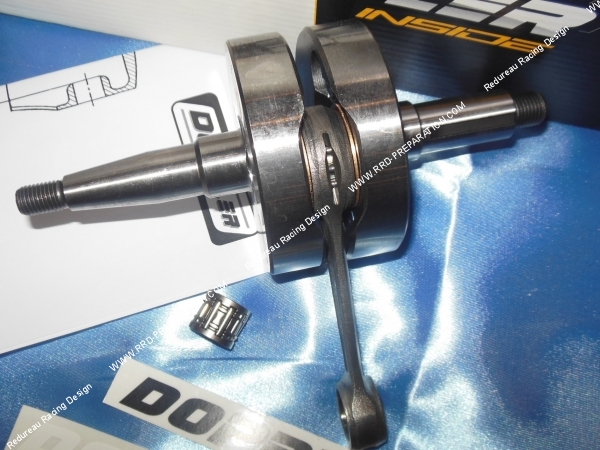

Here is one of the best quality / price / performance ratio! The DOPPLER ENDURANCE crankshaft is a reinforced model, dynamic balancing and full masses, it is really intended for reinforcement of the low engine and performance, it is certainly the most studied crankshaft on the market for this price.
What are the differences with the ER1? The connecting rod, the materials used…. More clearly the reinforcement and the balancing which are even more neat! The steels used are of the highest quality, they are treated and well hardened, the balancing is dynamic and really neat! When we talk about finishing at DOPPLER, we don't skimp! The finish is really perfect for such a price.

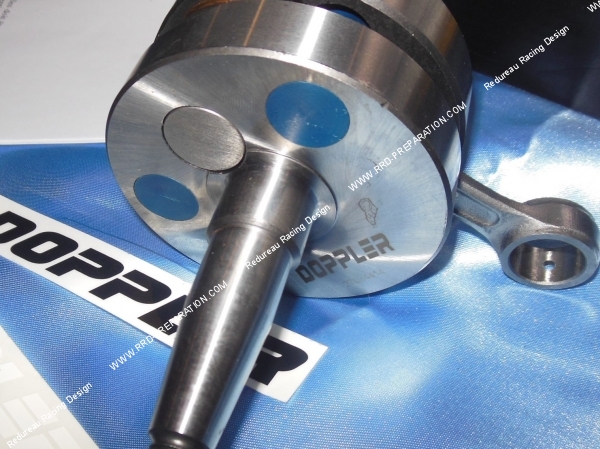

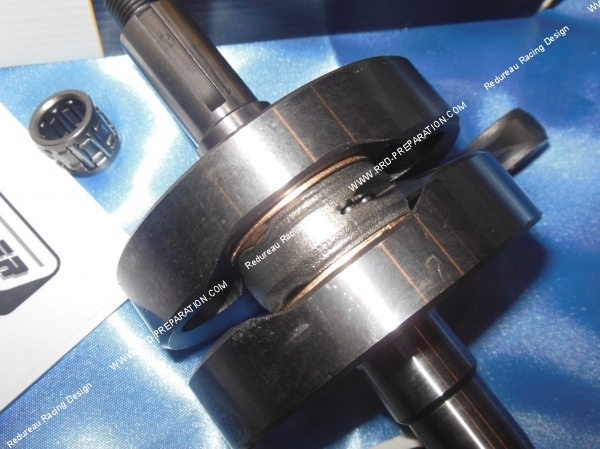

The connecting rod is a very high-end lightweight model, it is placed on a reinforced crank pin and a well increased cage with anti-friction wedges. Blue anodized aluminum caps obviously cover the balancing holes. For more pre-compression, the masses are extremely full. The lubrication is obviously reviewed and corrected too.
The connecting rod is a very top-of-the-range model, well designed, casting mode. One of the bristles (bearing housing) is increased in Ø20mm in order to reinforce the lower engine assembly. In summary, this crankshaft will stand up to most heavily equipped engines, it offers excellent performance and strength to match. DOPPLER did not forget to increase the needle cage of connecting rod small ends in Ø12X16X16mm against 12X15X15mm for the origin.
Technicalities:
-Full masses
-Dynamic balancing
-Soies: Ø20mm on each side
-Reinforced connecting rod original size 85mm
-Cage with increased needle 12X16X16mm
-Original stroke: 39.00mm
- Needle cage: supplied
Mounts on 50cc motorcycles with gearbox equipped with the minarelli am3, am4, am5, am6 euro 1, am6 euro 2 engine :
APRILIA RS 50cc am6 engine from 1997 to 2006 (new attention after 2006 in derbi euro 3 engine)
APRILIA RX am6 engine (attention news after 2006 in derbi euro 3 engine)
APRILIA MX am6 engine (attention news after 2006 in derbi euro 3 engine)
APRILIA TUONO 50cc am6 engine from 1997 to 2006 (new attention after 2006 in derbi euro 3 engine)
BETA RR
BETA RR ALU
BETA CRE
HONDA HM
HONDA CRE
HONDA BAJA
HUSQUVARNA WXE
HUSQUVARNA CH
HM DERAPAGE
HM CRE
MALAGUTI DRAKON
MALAGUTI XTM
MALAGUTI XSM
FANTIC CABALLERO
PEUGEOT XP6
PEUGEOT XPS
MOTORHISPANIA RYZ
PEUGEOT XPS
PEUGEOT XP STREET
PEUGEOT XP STREET EVO
PEUGEOT XR6
MOTORHISPANIA RX
PEUGEOT XR7
MOTORHISPANIA RX-R
RIAJU RS1
RIEJU RS2
RIEJU RS2 MATRIX
RIEJU RS2 MATRIX PRO
RIEJU SMX
RIEJU MRX
RIEJU SPIKE
KEEWAY TX FR
YAMAHA DT
MBK X-LIMIT
YAMAHA TZR
MBK X-POWER
SHERCO SM
SHERCO ENDURO
SHERCO HRD
SHERCO ENDURO
CPI SM
And many other machines!
