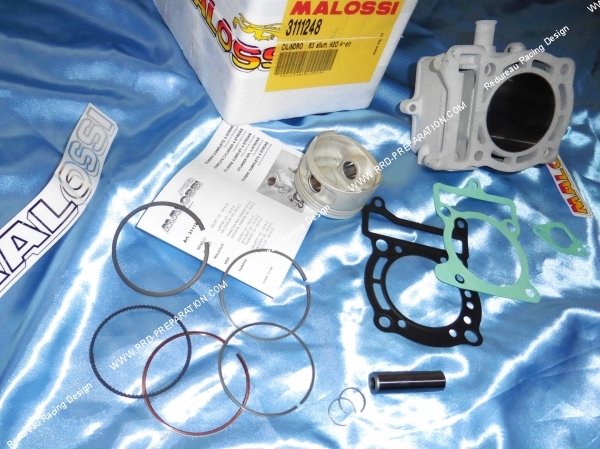

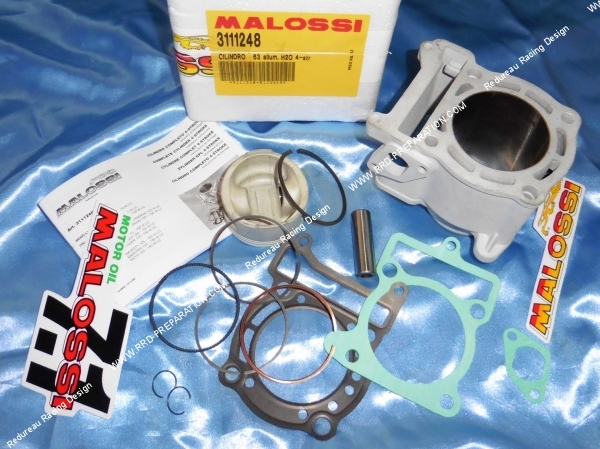

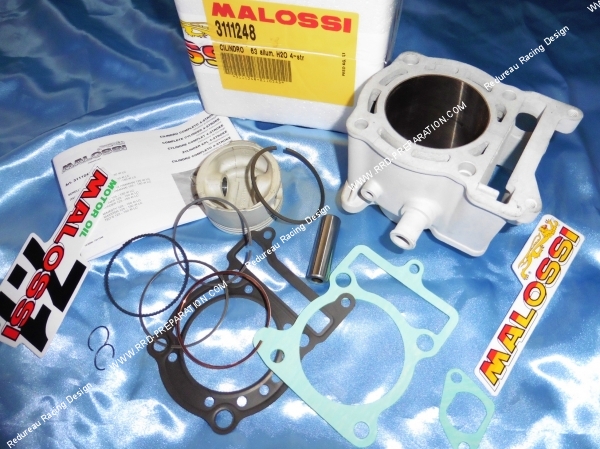

Here is the Ø63mm MALOSSI maxi kit for BENELLI, YAMAHA, MBK and ITALJET 125cc. As usual MALOSSI has made a powerful, solid, torquey and very high-end kit. This little monster will project your displacement from 125cc to real 182.58cc of extreme performance. MALOSSI has for this thermal group found the perfect stroke / diameter ratio, this cylinder tightens without problem supported by your original crankshaft. He is already racing in competition and in endurance, that is to say if he is tested… Let’s now rather see how MALOSSI did to increase the performance of the high engine, he obviously did not stop and increased the diameter of the piston cylinder! Here are the technical characteristics of the kit:
Cylinder
-
Material: primary aluminum alloy with a high content of hardened and tempered silicon, cylinder liner with application of silicon carbides in a galvanic nickel matrix and crossed smoothing by two diamond passages, with very strict tolerances.
-
Machining: by high precision CNC machine tools.
-
Cylinder-piston couplings with a coupling tolerance of 0.05 mm.
-
Recalculated and enlarged heat exchange surfaces.
P i ston
-
Extra compact with three segments.
-
Material: special aluminum alloy with a high silicon content with low thermal expansion with application of tin on the sliding walls.
-
CNC machine tool machining
-
Lightened and reinforced.
-
Enlarged heat exchange surfaces.
Segments
-
Compression - specials with high sliding and very high mechanical resistance, made of chrome-plated S10 spheroidal cast iron.
-
1st scraper ring - in chrome-plated S10 spheroidal cast iron.
-
2nd scraper ring - three-piece made of special steel, chrome-plated.
With this kit you therefore tighten in position an ultra robust, powerful and safe material! No more mole accelerations, restricted peak speeds… Disappointing pick-ups! Please note, this kit is not to be put in just any hands ... Warned pilot!
Mounts on :
BENELLI VELVET 125 4T LC (YAMAHA)
BENELLI VELVET 150 4T LC (YAMAHA)
ITALJET JUPITER 125 4T LC (YAMAHA)
ITALJET JUPITER 150 4T LC (YAMAHA)
ITALJET MILLENNIUM 125 4T LC (YAMAHA)
ITALJET MILLENNIUM 150 4T LC (YAMAHA)
MALAGUTI MADISON 125 4T LC (YAMAHA)
MALAGUTI PHANTOM MAX 125 4T LC (YAMAHA)
MALAGUTI MADISON 150 4T LC (YAMAHA)
MBK DOODO 125 4T LC
MBK DOODO 150 4T LC
MBK SKYLINER 125 4T LC
MBK SKYLINER 150 4T LC
MBK THUNDER 125 4T LC
MBK THUNDER 150 4T LC
YAMAHA MAJESTY 125 4T LC
YAMAHA MAJESTY 150 4T LC
YAMAHA MAXSTER 125 4T LC
YAMAHA MAXSTER 150 4T LC
YAMAHA SKYLINER 125 4T LC
YAMAHA TEO'S 125 4T LC
YAMAHA TEO'S 150 4T LC
