Ignition TOP PERFORMANCES RACING double curve internal rotor SELETTRA motorcycle 50cc DERBI and MINARELLI AM6

Here is the TOP PERFORMANCES RACING internal rotor SELETTRA motorcycle 50cc gearbox ignition with DERBI or MINARELLI AM6 engine!

Superb quality, the ignition comes from the racing factory branch of TOP PERFORMANCES . Only intended for 50cc 2T liquid scooters (H20) for circuit use. Just like TM on KZ Karting engines, MALOSSI MHR on its RC ONE engines, ITALKIT on its competition machines, TPR has chosen the latest generation SELETTRA as its base, with a double-curved Ø58mm rotor!

The ignition kit consists of a variable advance digital electronic unit equipped with 2 preset maps with a system based on uP Freescale 8 Bit 40 MHz for reduced calculation times as well as excellent stability and precision in ignition. advance, whose hardware architecture guarantees high immunity to disturbances.

The electronic box incorporates a high voltage coil with wiring with temperature class 125°C and a rotor-stator unit with high permeability monolithic magnetic circuit with Ø 58 rotor with permanent neodymium magnets with Automotive class wiring and waterproof connectors, IP67 certified with retention block.

The kit is completed with a CNC adapter in anodized anticorodal and an inertial mass in non-magnetic AISI 316 steel.

Obviously, to provide maximum power to the engine, the ignition does not produce energy for the headlights, the double curve system works very simply by plugging or unplugging a cable. One curve is more tuned to very powerful engines at high revs (curve 1), the other curve, less aggressive, is recommended on more torquey engines or air-cooled engines, cast iron... The new computer integrated into the chip is very fast and it allows the production of a nice smooth curve!

The advance is adjusted at 0° all stacks, so exactly at TDC the two marks face to face!

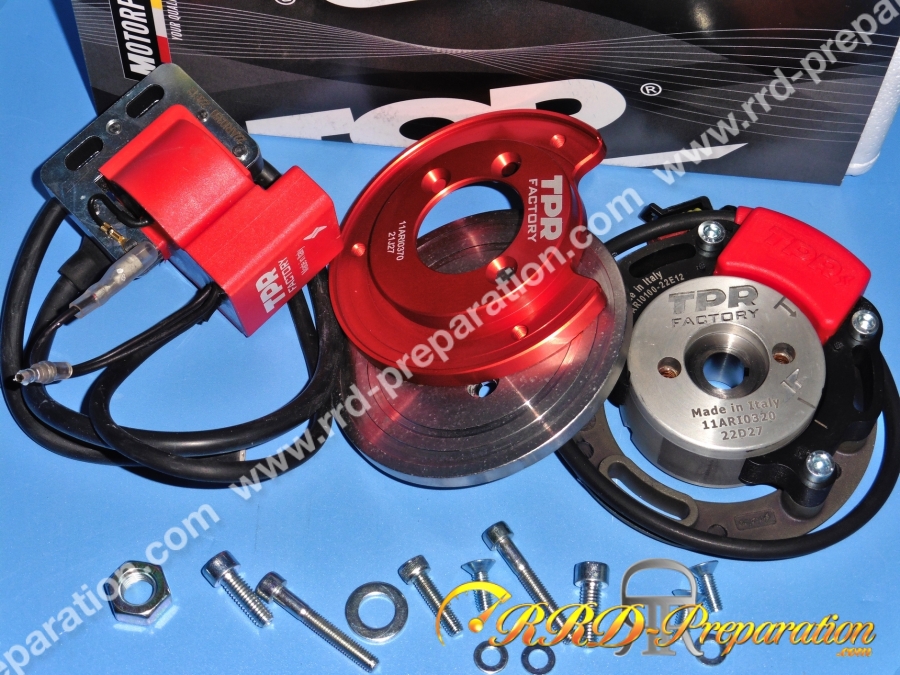

Will be provided :

- 1x Stator group

- 1x Inner Rotor

- 1x Digital electronic box

- 1x Inertial mass

- 1x Stator adapter

- 2x TCHC M6x18 screws

- 2x TCHC M5x35 screws

- 1x TCHC M5x20 screw

- 3x Flat washer Ø5

- 3x TFHC M5x14 screws

- 1x Nut M10x1.25

- 1x Sheet metal washer Ø10mm

Mounts on:

APRILIA CLASSIC 50 2T 92 99

APRILIA EUROPA 50 2T 91 92

APRILIA MX 50 2T 04 04

APRILIA MX MOTORCYCLE 50 2T 95 03

APRILIA PEGASO 50 2T 92 94

APRILIA RS 50 2T 91 92

APRILIA RS 50 2T 93 95

APRILIA RS 50 2T 96 98

APRILIA RS 50 2T 99 05

APRILIA RS 50 2T 06 10

APRILIA RS4 50 2T 11 13

APRILIA RS4 REPLICA 50 2T 14 16

APRILIA X-ray 50 2T 03 04

APRILIA X-ray 50 2T 06 10

APRILIA X-ray 50 2T 14 16

APRILIA RX 3-5 MA RC E 50 2T 91 94

APRILIA RX IN DURO 50 2T 95 03

APRILIA RX-RACING 50 2T 03 06

APRILIA SX 50 2T 06 13

APRILIA SX 50 2T 14 16

APRILIA SX LIMITED EDITION 50 2T 14 16

APRILIA TUONO 50 2T 03 04

BETA RR 2T 50 EU4 50 2T 18 20

BETA RR 50 RACING EU4 50 2T 18 20

BETA RR ALU 50 2T 08 11

BETA RR DURO 50 2T 06 11

BETA RR DURO 50 2T 12 17

BETA RR DURO FACTORY 50 2T 12 15

BETA RR IN DURO RACING 50 2T 16 17

BETA RR IN DURO SPORT 50 2T 15 17

BETA RR BIKER 50 2T 06 11

BETA RR BIKER 50 2T 12 17

BETA RR BIKE SPORT 50 2T 15 17

BETA RR BIKE TRACK 50 2T 12 17

CH HUSQUARNA SM 50 2T 00 10

CH HUSQUARNA WR 50 2T 00 10

CH HUSQUARNA WSM 50 2T 00 10

CMC DURO 50 2T 11 11

CMC BIKER 50 2T 11 11

DERBI GPR 2T 50 2T 13 13

DERBI GPR 2T EU2 50 2T 09 10

DERBI GPR NUDE & GPR NUDE TUNING 50 2T 06 08

DERBI GPR NUDE SPORT 50 2T 06 06

DERBI GPR R EU2 - GPR REPLICA EU2 50 2T 08 08

DERBI GPR RACING EU2 50 2T 06 06

DERBI GPR REPLICA & GPR R EU2 50 2T 06 06

DERBI GPR REPLICA 2T MALOSSI 50 2T 07 07

DERBI GPR REPLICA PESEK EU2 50 2T 07 07

DERBI SENDA BLACK EDITION 50 2T 03 03

DERBI SENDA HYP DRD EVO EU2 50 2T 08 09

DERBI SENDA HYP DRD EVO LIMITED EDITION EU2 50 2T 08 08

DERBI SENDA-R 50 2T 99 99

DERBI SENDA-R 50 2T 00 01

DERBI SENDA R DRD BLACK DEVIL 2A EDIZIONE 50 2T 03 03

DERBI SENDA R DRD EU1 EU1R 50 2T 02 02

DERBI SENDA R DRD PRO EU2 50 2T 05 11

DERBI SENDA R DRD RACING 50 2T 04 05

DERBI SENDA R DRD RACING EU2 50 2T 05 08

DERBI SENDA R DRD RACING LTD 50 2T 05 05

DERBI SENDA R DRD X-TREME 2T EU2 50 2T 14 15

DERBI SENDA R DRD X-TREME 2T EURO2 50 2T 10 12

DERBI SENDAR RACER 50 2T 03 03

DERBI SENDA R X-RACE 50 2T 04 04

DERBI SENDA R X-RACE 50 2T 05 05

DERBI SENDA R X-RACE 2T EU2 50 2T 10 10

DERBI SENDA R X-RACE EU2 50 2T 06 06

DERBI SENDA R X-RACE EU2 50 2T 07 09

DERBI SENDA R X-TREME 50 2T 03 03

DERBI SENDA R X-TREME 50 2T 05 05

DERBI SENDA R X-TREME 2T EU2 50 2T 10 10

DERBI SENDA R X-TREME EU2 50 2T 04 04

DERBI SENDA R X-TREME EU2 50 2T 05 06

DERBI SENDA R X-TREME EU2 50 2T 07 07

DERBI SENDA R X-TREME EU2 50 2T 08 08

DERBI SENDA SM 50 2T 00 01

DERBI SENDA SM DRD EDITION BLACK 50 2T 05 05

DERBI SENDA SM DRD EU1 EU1R 50 2T 02 03

DERBI SENDA SM DRD PRO EU2 50 2T 05 11

DERBI SENDA SM DRD PRO EU2 2VER 50 2T 05 08

DERBI SENDA SM DRD RACING 50 2T 04 05

DERBI SENDA SM DRD RACING EU2 50 2T 05 08

DERBI SENDA SM DRD RACING EU2 50 2T 10 13

DERBI SENDA SM DRD RACING LTD 50 2T 05 05

DERBI SENDA SM DRD RACING LTD EU2 50 2T 07 07

DERBI SENDA SM DRD X-TREME 2T EU2 50 2T 14 15

DERBI SENDA SM DRD X-TREME 2T EU2 LIMITED ED 50 2T 14 15

DERBI SENDA SM X-RACE 50 2T 04 04

DERBI SENDA SM X-RACE 50 2T 05 05

DERBI SENDA SM X-RACE 2T EU2 50 2T 10 10

DERBI SENDA SM X-RACE EU2 50 2T 06 06

DERBI SENDA SM X-RACE EU2 50 2T 07 09

DERBI SENDA SM X-RACE EU2 2VER 50 2T 07 09

DERBI SENDA SM X-TREME 50 2T 02 02

DERBI SENDA SM X-TREME 50 2T 03 03

DERBI SENDA SM X-TREME 2T EU2 50 2T 10 10

DERBI SENDA SM X-TREME EU2 50 2T 04 04

DERBI SENDA SM X-TREME EU2 50 2T 05 06

DERBI SENDA SM X-TREME EU2 50 2T 07 07

DERBI SENDA SM X-TREME EU2 50 2T 08 08

DERBI SENDA SM X-TREME EU2 2A EDIZIONE 50 2T 05 05

FANTIC BIKER CABALLERO 50 2T 06 09

FANTIC BIKER CABALLERO 50 2T 10 10

FANTIC CABALLERO BIKER COMPETITION 50 2T 06 09

FANTIC CABALLERO BIKER COMPETITION 50 2T 10 10

FANTIC CABALLERO REGOLARITA 50 2T 06 09

FANTIC CABALLERO REGOLARITA 50 2T 10 10

FANTIC CABALLERO REGOLARITÀ COMPETITION 50 2T 06 09

FANTIC CABALLERO REGOLARITÀ COMPETITION 50 2T 10 10

FANTIC IN DURO COMPETITION EU4 50 2T 18 20

FANTIC DURO PERFORMANCE EU4 50 2T 18 20

FANTIC MOTORCYCLE COMPETITION EU4 50 2T 18 20

FANTIC BIKE PERFORMANCE EU4 50 2T 18 20

GILERA RC R 50 2T 03 03

GILERA RC R 50 2T 06 07

GILERA RC R 50 2T 11 12

GILERA RC R 50 2T 13 13

GILERA RC R (CHE-SYC) 50 2T 13 15

GILERA SMT 50 2T 03 05

GILERA SMT 50 2T 06 12

GILERA SMT 50 2T 13 13

GILERA SMT RACING 50 2T 11 12

H.M. BAJA, BASIC SKID 50 2T 10 11

H.M. CMC 50 2T 10 11

H.M. CRE BAJA RR, DERAPAGE RR 50 2T 07 09

H.M. CRE BAJA RR, DERAPAGE RR 50 2T 10 11

H.M. CRE BAJA RR, DERAPAGE RR 50 2T 12 17

H.M. CRE BAJA, DERAPAGE 50 2T 07 09

H.M. CRE BAJA, DERAPAGE 50 2T 10 11

H.M. CRE BAJA, DERAPAGE 50 2T 12 17

H.M. CRE SIX COMPETITION 50 2T 10 11

H.M. CRE SIX COMPETITION 50 2T 12 17

H.M. CRE SIX, BAIA, DERAPAGE 50 2T 95 00

H.M. CRE SIX, BAIA, DERAPAGE 50 2T 01 02

H.M. CRE SIX, BAIA, DERAPAGE 50 2T 03 05

H.M. CRE SIX, BAIA, DERAPAGE 50 2T 06 06

H.M. CRE SIX, COMPETITION SKID 50 2T 07 09

H.M. COMPETITION SKID 50 2T 10 11

H.M. COMPETITION SKID 50 2T 12 17

MALAGUTI CNK DRAKON 50 2T 05 07

MALAGUTI FIFTY EVOLUTION 50 2T 90 93

MALAGUTI XSM 50 2T 03 03

MALAGUTI XSM 50 2T 04 05

MALAGUTI XSM 50 2T 06 06

MALAGUTI XSM POWER-UP 50 2T 07 07

MALAGUTI XSM POWER-UP 50 2T 08 08

MALAGUTI XSM POWER-UP 50 2T 09 10

MALAGUTI XTM 50 2T 03 03

MALAGUTI XTM 50 2T 06 06

MALAGUTI XTM POWER-UP 50 2T 07 07

MALAGUTI XTM POWER-UP 50 2T 08 08

MALAGUTI XTM POWER-UP 50 2T 09 10

MBK X LIMIT 50 2T 03 04

MBK X-POWER 50 2T 03 04

MINARELLI MOTOR AM 3-4-5 50 2T 91 95

MINARELLI MOTOR AM 6 1° SERIES 50 2T 96 11

MINARELLI MOTOR AM 6 2° SERIES 50 2T 12 18

MOTORHISPANIA FURIA 50 2T 97 00

MOTORHISPANIA FURIA MAX 50 2T 10 12

MOTORHISPANIA X-ray 50 2T 09 12

MOTORHISPANIA RX-R 50 2T 09 12

PEUGEOT SUPERMOTOR 50 2T 90 02

PEUGEOT XP6 TRAIL S/AVV. ELETTRICO 50 2T 90 02

PEUGEOT XR6 RACING CAT. C/AVV.ELETT. 50 2T 90 02

RIEJU MRT 50 2T 09 12

RIEJU MRT 50 EU4 50 2T 18 20

RIEJU MRT-PRO 50 2T 09 12

RIEJU MRT PRO EU4 50 2T 18 20

RIEJU MRT PRO REPLICA EU4 50 2T 18 20

RIEJU MRT PRO REPLICA SM EU4 50 2T 18 20

RIEJU MRT PRO SM 50 2T 09 12

RIEJU MRT PRO SM EU4 50 2T 18 20

RIEJU MRT SM 50 2T 09 12

RIEJU MRT SM EU4 50 2T 18 20

RIEJU MRT TROPHY EU4 50 2T 18 20

RIEJU MRX 50 2T 01 04

RIEJU MRX-PRO 50 2T 01 04

RIEJU RR 50 2T 05 06

RIEJU RS1 50 2T 98 01

RIEJU RS2 MATRIX 50 2T 05 06

RIEJU RS2 MATRIX PRO 50 2T 05 06

RIEJU RS2 NAKED 50 2T 04 05

RIEJU RS3 EU4 50 2T 18 20

RIEJU RS3 NKD EU4 50 2T 18 20

RIEJU SMX ES/KS 50 2T 01 01

RIEJU SMX PRO ES/KS 50 2T 03 03

RIEJU SPIKE 50 2T 98 01

SHE RC O FACTORY SE-R EU4 50 2T 18 20

SHE RC O FACTORY SE-RS EU4 50 2T 18 20

SHE RC O FACTORY SILVER SM-R EU4 50 2T 18 20

SHE RC O FACTORY SILVER SM-RS EU4 50 2T 18 20

SHE RC O FACTORY SM-R EU4 50 2T 18 20

SHE RC O FACTORY SM-RS EU4 50 2T 18 20

SHE RC O DURO HRD 50 2T 09 13

SHE RC O HRD BIKER 50 2T 09 13

VALENTI-RACING N01 EU5 50 2T 22 22

VALENTI-RACING N01 LOW EU5 50 2T 22 22

VALENTI-RACING RME 50 2T 15 17

VALENTI-RACING RME EU5 50 2T 22 22

VALENTI-RACING RME RACE EU5 50 2T 22 22

VALENTI-RACING S01 SCRAMBLER EU5 50 2T 22 22

VALENTI-RACING SM 50 2T 15 17

VALENTI-RACING SM EU5 50 2T 22 22

WIND BAJA 50 2T 18 20

WIND BAJA RR 50 2T 18 20

WIND SKID 50 2T 18 20

WIND SLIDING RR 50 2T 18 20

YAMAHA DT R 50 2T 03 05

YAMAHA DT R 50 2T 06 06

YAMAHA DT R 50 2T 07 07

YAMAHA DT R 50 2T 08 11

YAMAHA DT RSM 50 2T 03 05

YAMAHA DT X 50 2T 06 06

YAMAHA DT X 50 2T 07 07

YAMAHA DT X 50 2T 08 11

YAMAHA TZR 50 2T 03 05

YAMAHA TZR 50 2T 06 06

YAMAHA TZR 50 2T 07 07

YAMAHA TZR 50 2T 08 08

YAMAHA TZR 50 2T 10 10

YAMAHA TZR 50 2T 11 11

YAMAHA TZR RR 50 2T 05 05
