Piston bi segments ITALKIT for kit Ø55mm 105cc ITALKIT aluminum on scooter Vespa 50cc 2T PK, HP, XL, SPECIAL, ..

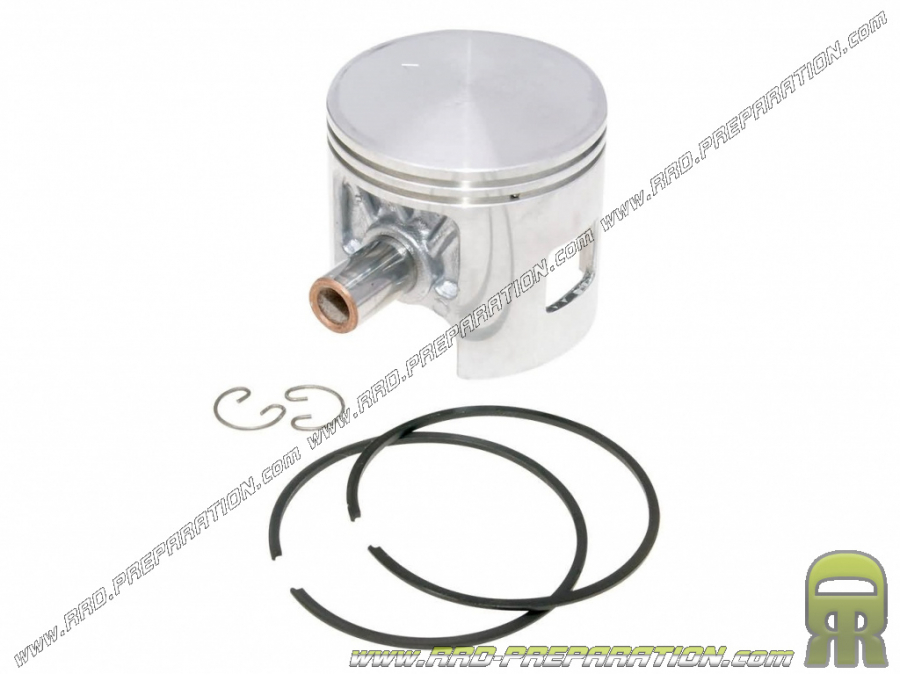

Here is the replacement piston ITALKIT for the kit high engine Ø55mm 105cc ITALKIT aluminum but also the POLINI SPORT cast iron 6 transfers for scooter PIAGGIO APE and VESPA PK 50, XL, HP ...

Specially treated with pearlescent silver anti-wear and pre-lapped, it has a preparation on the rear skirt for a better filling of the intake and allows to have a better scan.

The latter received a rear grease nipple to lubricate the cylinder. Delivered complete with its two 1.50mm segments, its clips and its Ø12mm piston pin.

Side A: Ø55.00 mm

B-side: Ø55,40mm

Side C: Ø55,80 mm

D-side: Ø56,00mm

E side: Ø56,20mm

F-side: Ø56.50 mm

E-side: Ø56,60 mm

Mounts on kit Ø55mm 105cc ITALKIT aluminum 6 transfers for scooter VESPA 50cc 2T PK, HP, XL, SPECIAL, PIAGGIO APE ... BUT ALSO on the kit high engine Ø55mm 100cc POLINI SPORT cast iron 6 transfers for scooter VESPA 50cc 2T PK, HP , XL, SPECIAL, PIAGGIO APE ...
