High engine kit Ø55mm 105cc DR Racing cast iron 6 transfers for scooter VESPA 50cc 2T PK, HP, XL, SPECIAL, PIAGGIO APE ...

Attention, high engine exceeding the regulatory capacity of 50cc, reserved for competition on the circuit, run ...



Here is the high engine in minacrom cast iron (high-end materials) with high compression cylinder head from DR Racing. A complete kit for guaranteed engine performance and reliability. Its displacement reaches 102cc precisely for a 55mm diameter bore with a cylinder equipped with 6 large intake transfers and an ovalized and well widened exhaust outlet, an engine efficiency which will be greatly improved.





Its stroke is 43mm with a compression ratio of 1:12. Clearly, a high engine ideal for quality refurbishment and additional performance. The cylinder head is a model entirely in aluminum, light and designed in materials such that the cooling will be improved. Hemispherical shaped chamber with a smooth, raw finish (see picture of the chamber).





The piston chosen to accompany this high engine is a bi-segment with specific treatment with a high silicon content guaranteeing better heat exchange and performance. The latter has a flat cap increasing the compression ratio considerably, a preparation on the rear skirt via an opening to improve the filling of the intake and the sweep.



Two segments in treated steel, chrome-plated in a specific shape at the level of the piston pins. Thanks to the 1.5 mm thickness of the latter, the torque will be greatly improved with the increase in friction to the detriment of high speeds. Of course, supplied with its Ø12 axis and its 2 clips in G.



Delivered complete as presented You will understand, this little performance monster will be a real asset combining strength, price, reliability, longevity ...

We recommend accompanying this high engine with at least: a 21 or 24 mm carburetor for the best, an adjustment of your variation with increase or reduction of the weight of your rollers, an unbridled racing ignition, cold racing spark plug, oil 100% synthetic engine, relaxation racing exhaust ...

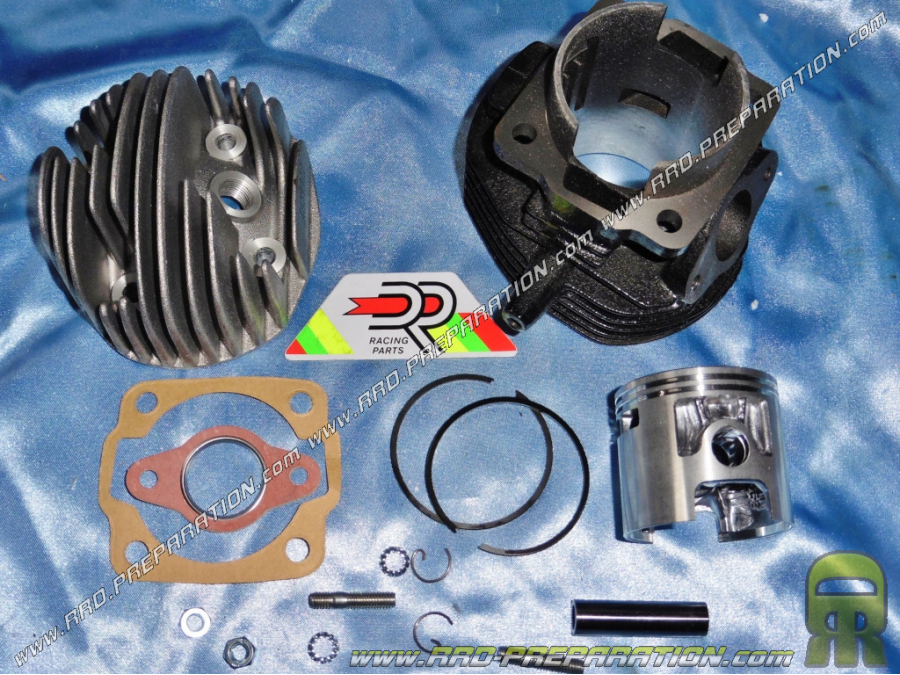

Contains :

-Cylinder in cast iron minacrom 6 transfers and oval exhaust
-High compression aluminum cylinder head
-Piston bi segment
-2x Chromed steel segments
-Axis of piston Ø12
-Clips in G
-Seal base
-Exhaust gasket
-Exhaust studs with screws



As an option we offer a stage 1 preparation, this preparation is a modification of the exhaust port by increasing the diagrams and improving the duct, it increases the performance of the cylinder. An improvement to the bottom of the skirt is also included in this modification. Allow a little extra time for this preparation!



Mounts on:

PIAGGIO APE 50 2T 09 11
PIAGGIO APE 50 2T 12 17
PIAGGIO APE FL - FL2 50 2T 89 95
PIAGGIO APE FL3 EUROPA 50 2T 96 99
PIAGGIO APE MIX 2T 50 2T 98 08
PIAGGIO APE P 50 2T 80 85
PIAGGIO APE RST MIX 50 2T 99 03
PIAGGIO APE TM P 50 2T 85 89
PIAGGIO VESPA FL 50 2T 90 90
PIAGGIO VESPA FL2 HP 50 2T 91 97
PIAGGIO VESPA N 50 2T 89 90
PIAGGIO VESPA PK 50 2T 82 84
PIAGGIO VESPA PK XL 50 2T 85 88
PIAGGIO VESPA PK XL RUSH 50 2S 88 89
PIAGGIO VESPA SPECIAL-LR 50 2T 67 82



Does not fit on the automatic PK!
