Exhaust BIDALOT SMR low passage for MBK X-power, APRILIA RS & YAMAHA TZR... gunmetal silencer, chrome body

Road approved! Allowed on public roads!

Now only available with GUNMETAL silencer.



Here is the BIDALOT exhaust named SMR for am6 motorized sports box machines. This exhaust is ideal with small equipment or even an original engine. We got excellent results from it with an original machine (only 19mm PHBG carburettor and 0.30mm carbon valve slats + air box preparation). Otherwise, we have also produced good performances on small 70cc such as the TOP PERFORMANCES FONTE NOIR 70cc or even AIRSAL 70cc…

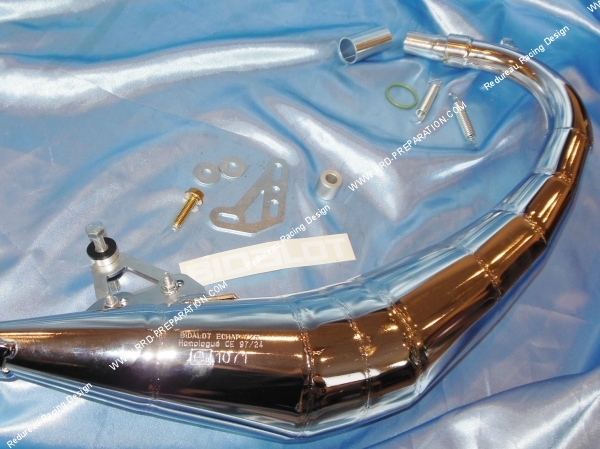

This exhaust has a fairly thick sheet metal, designed to release torque, which also makes it very solid! The steel remains of excellent quality… The gain in performance compared to an original or low-end exhaust will be quite substantial! The design reflects the quality to the full nose…. Perfect welds! Multi-position legs that will allow you to adapt this exhaust to many machines and give it the right position!

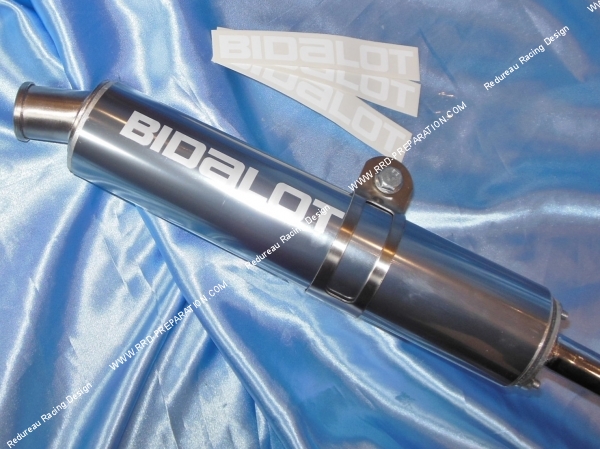

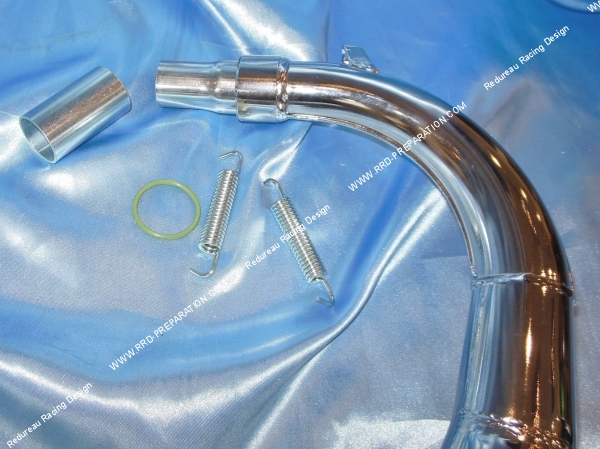

2 cylinder outlet tubes are delivered, the big one in Ø28mm and the small one in Ø25mm. The screws are also at the top! The muffler is superb and will allow you to couple your strong performances with a melodious and quite low noise! The silencer is now only available in Gunmetal version! When the muffler body, it has an excellent chrome finish, very aesthetic! To conclude, BIDALOT on this one offers you an exhaust with a really top look, excellent performance, a perfect torque / power ratio, and a very present solidity!

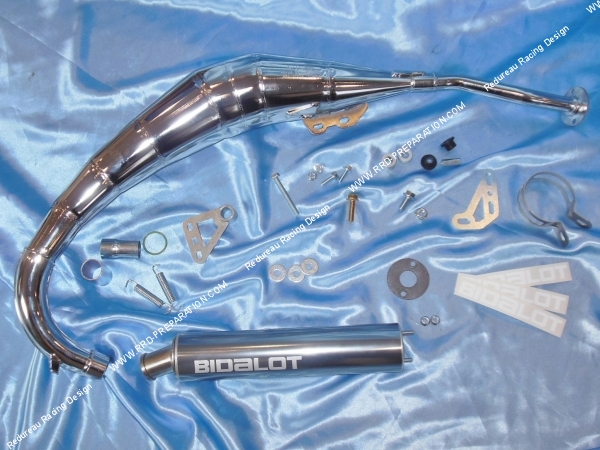

The pack contains:

1 pot of relaxation

1 Venturi Ø28/28

1 Venturi Ø28/25

1 Silencer

1 muffler gasket

1 Silencer Collar

1 H-head screw with base M8 x 20

1 H-head screw with base M8 x 30

1 H-head screw with base M8 x 60

2 H-head screws with base M6 x 16

2 M8 collar nut

3 M6 collar nut

2 pot fixing bracket

1 Spacer Ø8.5 x Ø20 x 10

1 Spacer Ø8.5 x Ø20 x 20

2 Spring 3 Washer Ø8 x Ø24 x 1

1 O-ring Ø28.2 x 2.6

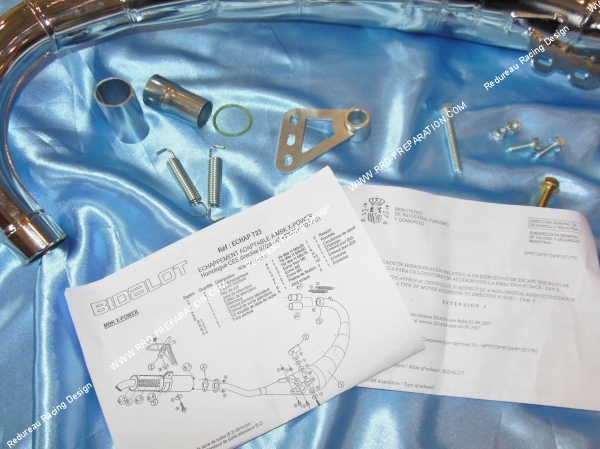

Assembly instructions and approval certificate

EEC directive 97/24, n° e9*97/24*1071*01.





Mounts on:

Aprilia

AF1 50 2t LC (AM 4 5) (AM6 engine)

MX 50 2t LC (AM 6)

RS 50 2t LC (AM 3-4-5-6 engine)

RX 50 2t LC (AM 6 engine)

TUAREG 50 2t LC (AM6 engine)

TUONO 50 2t LC (AM 6 engine)

Beta

ENDURO RR 50 2t LC (AM6) (perimeter frame)

ENDURO RR 50 2t LC (AM6) (tubular frame)

RR T ENDURO 50 2t LC (AM6) (tubular frame)

RR T SUPERMOTARD 50 2t LC (AM6) (tubular frame)

SUPERMOTARD RR 50 2t LC (AM6) (perimeter frame)

SUPERMOTARD RR 50 2t LC (AM6) (tubular frame)

Fantic

CABALLERO 50 2t LC (AM6)



Generic

TIGGER SM 50 2t LC (AM6)

H.M.

CRE 50 2t LC (AM6)

DERAPAGE 50 2t LC (AM6)

Husqvarna

CH RACING 50 2t LC (AM6)

SM 50 2t LC (AM6 engine)

Malaguti

DRAKON NAKED 50 2t LC (AM6)

XSM 50 2t LC (AM6)XTM 50 2t LC (AM6) ( 01/2003 -> )

MBK

X-LIMIT ENDURO 50 2t LC (AM6) ( 01/2003 -> )

X-LIMIT ENDURO 50 2t LC (AM6) ( 01/1998 - 12/2002 )

X-POWER 50 2t LC (AM6) ( 01/2003 -> )

X-POWER 50 2t LC (AM6) ( 01/1998 - 12/2002 )

Peugeot

XP6 ENDURO 50 2t LC (AM6)

XPS 50 2t LC (AM 6)

XPS STREET EVO 2-3 50 2t LC (AM6)

XR6 50 2t LC (AM6)

Rieju

MRX ENDURO 50 2t LC (AM6)

RR ENDURO 50 2t LC (AM6)

RS1 50 2t LC (AM6)

RS2 50 2t LC (AM 6)

RS2 MATRIX 50 2t LC (AM6)

RS2 NAKED 50 2t LC (AM6)

SMX PRO SM 50 2t LC (AM6)

SPIKE 2 50 2t LC (AM6)

Sherco

HRD 50 2t LC (AM6)

Yamaha

DTR ENDURO 50 2t LC (AM6) (perimeter frame) from 2003

DTR ENDURO 50 2t LC (AM6) (tubular frame) up to 2002

DTX SM 50 2t LC (AM6) (perimeter frame) from 2003

DTX SM 50 2t LC (AM6) (tubular frame) up to 2002

TZR 50 2t LC (AM6) from 2003

TZR 50 2t LC (AM6) up to 2002)
