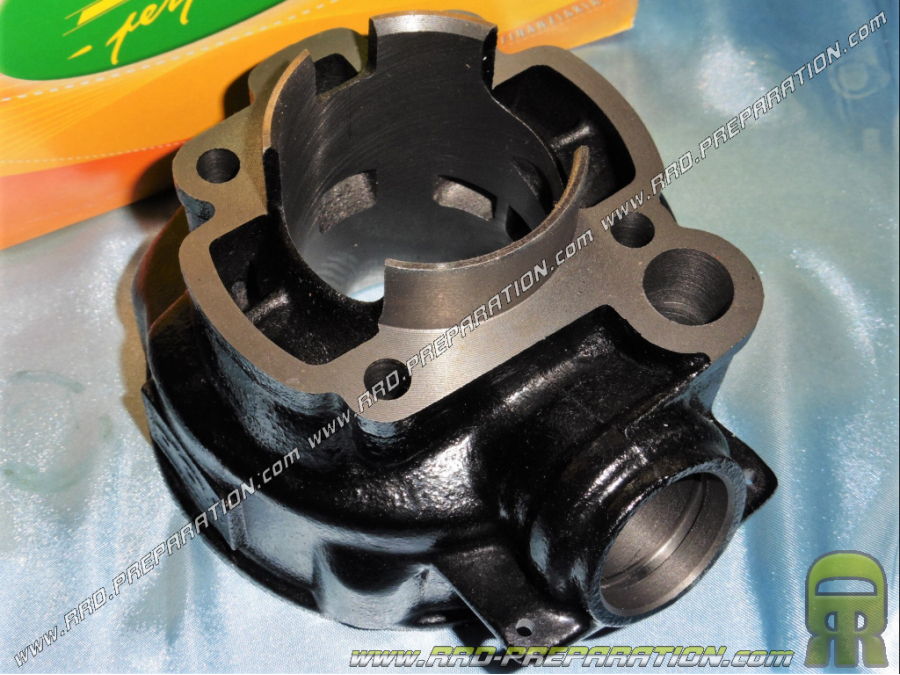

In the same type as the DR RACING, powerful, solid, inexpensive.
Ideal to replace your cylinder on the am6 engine with the very famous black TOP PERFORMANCES.
Not homologated on public roads, only reserved for competition, does not respect the highway code in any way!
A very good cylinder at low prices whose reputation is second to none, this cylinder comes directly from the kit. It is renowned for its performance, its torque/high speed ratio, its solidity and its more than reasonable price.
It is 49 millimeters in diameter, its diagrams are quite advanced.
Technical characteristics :
-Bore: 49mm
-Displacement: 73.54cc
- Planned race: 39mm (original)
-Compression ratio: 1:12.5
It has (as usual on the new motor parts cylinders) the grease nipples under the side transfers, the kit is very clean and finished as always on the Top performance kits.
Mounts on 50cc motorcycles with gearbox equipped with the minarelli am3, am4, am5, am6 euro 1, am6 euro 2 engine:
APRILIA RS 50cc am6 engine from 1997 to 2006 (warning news after 2006 in derbi euro 3 engine)
APRILIA RX am6 engine (warning news after 2006 in derbi euro 3 engine)
APRILIA MX am6 engine (warning news after 2006 in derbi euro 3 engine)
APRILIA TUONO 50cc am6 engine from 1997 to 2006 (warning news after 2006 in derbi euro 3 engine)
BETA RR
BETA RR ALU
BETA CRE
HONDA HM
HONDA CRE
HONDA BAJA
HUSQUVARNA WXE
HUSQUVARNA CH
HM DERAPAGE
HM CRE
MALAGUTI DRAKON
MALAGUTI XTM
MALAGUTI XSM
FANTIC CABALLERO
MOTORHISPANIA RX
MOTORHISPANIA RX-R
MOTORHISPANIA RYZ
PEUGEOT XPS
PEUGEOT XP STREET
PEUGEOT XP STREET EVO
PEUGEOT XR6
PEUGEOT XR7
PEUGEOT XP6
PEUGEOT XPS
RIEJU RS1
RIEJU RS2
RIEJU RS2 MATRIX
RIEJU RS2 MATRIX PRO
RIEJU SMX
RIEJU MRX
RIEJU SPIKE
KEEWAY TX EN
YAMAHA DT
MBK X-LIMIT
YAMAHA TZR
MBK X-POWER
SHERCO SM
SHERCO ENDURO
SHERCO HRD
SHERCO ENDURO
And many other machines!
Reference: 9919250
In the same type as the DR RACING, Powerful, solid, inexpensive, ideal to start a good little configuration on the am6 engine with the very famous black TOP PERFORMANCES .
Reference: 9906831
Replacement bi-segment piston for DR Racing & TOP PERFORMANCES Black cast iron 75cc kit.
Reference: 9906840
Ideal to refurbish your TOP PERFORMANCES 75cc kit!
Reference: 9906670
Replacement cylinder head Ø49mm for 75cc Top Black kit.
Reference: 9907070
Indispensable for the refurbishment of your high engine DR Racing , Top Performances black and pink 75cc.
Reference: CI.44.851.G14
Cylinder / piston without spare cylinder head, 85cc Ø50mm kit, 6 transfers, large 32mm exhaust, 14mm piston pin ... . To be accompanied by a 44.00mm long stroke crankshaft with 85mm connecting rod and its high compression stud cylinder head.
Reference: 30.432
Ideal for refurbishment resume without a complete kit, delivered without cylinder head.
Reference: CI.44.848.GR2
Cylinder / piston without cylinder head replacement kit 80cc Ø48mm, 6 transfers, large 32mm exhaust .... To accompany a long-stroke crankshaft with 44,00mm rod 85mm and its cylinder head high compression pad.
Reference: CI.44.851.GR2
Cylinder / piston without cylinder head replacement kit 85cc Ø50mm, 6 transfers, large 32mm exhaust .... To accompany a long-stroke crankshaft with 44,00mm rod 85mm and its cylinder head high compression pad.
Reference: 32134
The single cylinder to repair your maxikits SIMONINI 90cc on minarelli am6.
Reference: 32132/M3
The single cylinder alternative SIMONINI for am6, delivered naked!
Reference: 36434.M3
Ideal for refurbishment without spending too much money.
Reference: CI.44.849.GR2
Cylinder / piston without cylinder head replacement kit 80cc Ø48mm, 6 transfers, large 32mm exhaust .... To accompany a 44,00mm long stroke crankshaft with 90mm rod and only its head high compression pad.
Reference: H02138248
A much more solid kit than the aluminum models and which remains very torquey. Perfect for riding long distances every day without being afraid of a heater or primer.
Reference: 3112227
Ideal for refurbishment without taking over a complete kit, delivered without cylinder head.
