CBE carburetor conversion ring for CP / CP EVO to 35mm PWK

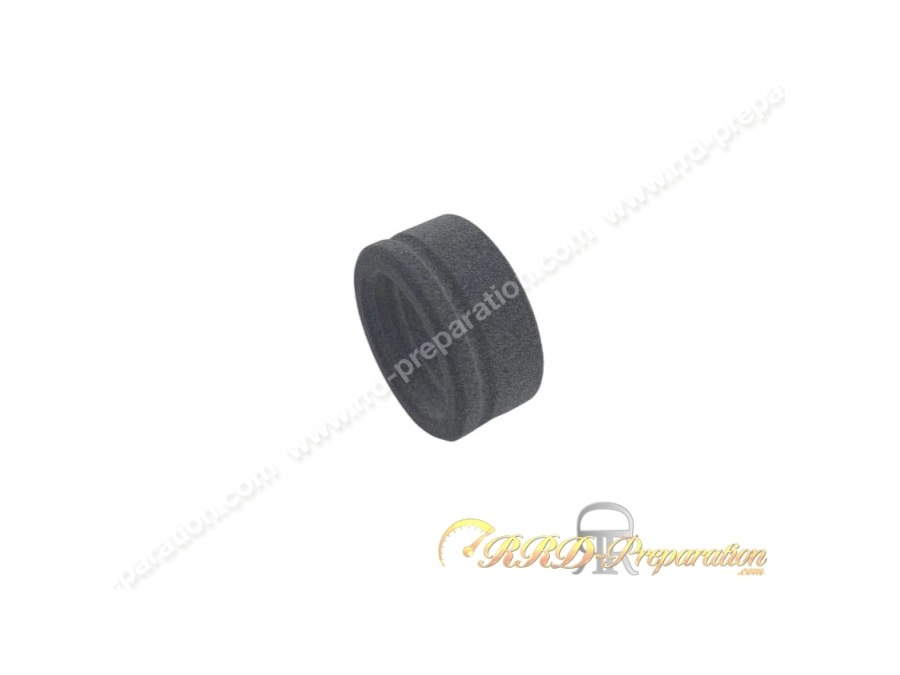

Here is the CBE carburetor conversion ring. It allows you to convert the standard diameter of CP 23/24mm or CP EVO 19mm carburetors to a 35mm fitting diameter like the PWK! This allows you to mount CP and CP EVO carburetors on intake manifolds originally designed for PWK carburetors! Installation is possible using chemical anchoring.

Reduction ring allowing the mounting of a Polini CP carburetor in a 35mm diameter intake manifold originally designed for a PWK carburetor. Suitable for the following carburetors (d = 28.5mm):

Polini CP Evolution Ø19

Polini CP Evolution Ø21

Polini CP Ø23

Polini CP Ø24

Made from a semi-rigid material, the ring can be mounted without tools. The dimensions are as follows:

outer diameter = 35mm

inner diameter = 28.5mm

Note that for other versions (Ød = 25.5) CP Ø15, Ø17.7, Ø19 and Ø21 can be mounted directly onto PHBG/CP pipes without the need for a ring.
