Kit 50cc Ø40mm aluminium MHR Replica pour scooter Peugeot horizontal air (nouveau modèle)
  • Kit 50cc Ø40mm aluminium MHR Replica pour scooter Peugeot horizontal air (nouveau modèle)

70cc Ø47mm aluminum MHR Replica kit for Peugeot horizontal air scooter (ludix, speedfight 3, new vivacity, ...)

3112901

The best of the 70cc air. A small 47mm that speaks loudly! Excellent torque / power / strength ratio .

Stage 1 engine preparation
€237.49
€218.49
local_offer Save 8%
Quantity
Shipping in 1-3 days

Description

Not approved for the public, open road. Reserved only for competition on circuit, closed road, run ...

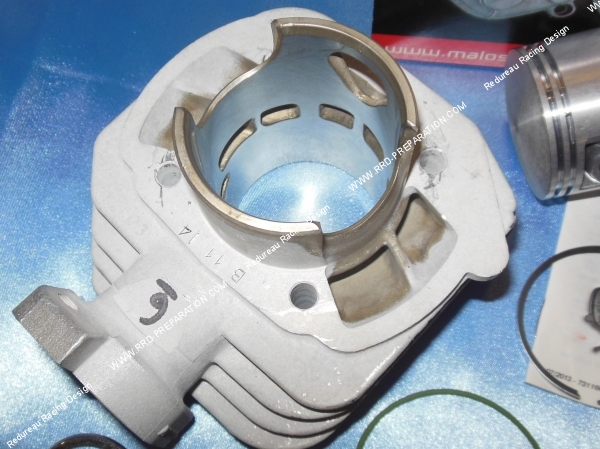

Here is the little brother of the 70cc MHR kit. This is a model named REPLICA. Its bore is a Ø47mm aluminum diameter thus offering significantly improved cooling. This REPLICA is very well designed with 6 intake lights and a big booster exhaust.

piston Kit 70cc Ø47mm aluminium MHR Replica pour scooter Peugeot horizontal air (ludix, speedfight 3, new vivacity,...)


Accompanied by a high silicon bi-segment piston, improved in every way with an opening on the rear skirt to improve the sweep of the intake and side grease nipples to optimize the solidity of the engine.

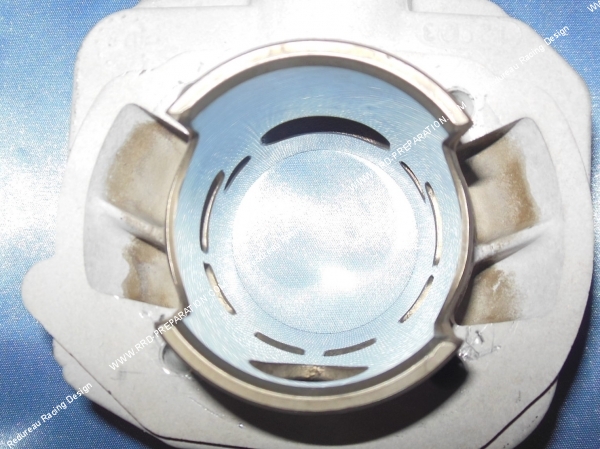

admission Kit 70cc Ø47mm aluminium MHR Replica pour scooter Peugeot horizontal air (ludix, speedfight 3, new vivacity,...)

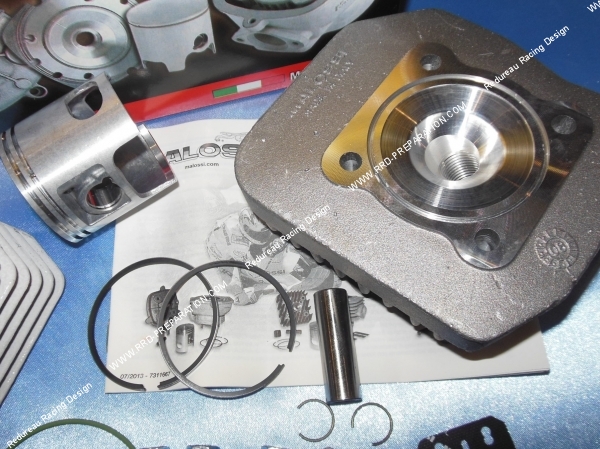

In addition, this cylinder is equipped with a monobloc cylinder head (one part) in quality aluminum, high compression model with frustoconical chamber polished finish, mounted on an O-ring to improve the engine tightness.

culasse Kit 70cc Ø47mm aluminium MHR Replica pour scooter Peugeot horizontal air (ludix, speedfight 3, new vivacity,...)


It is really a little monster of power while preserving excellent solidity and engine reliability. This cylinder being at a relatively affordable price, it will be very popular with trainers and even beginners!

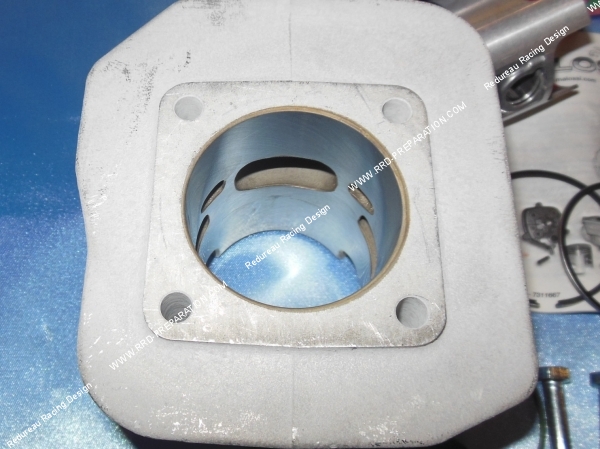

transferts Kit 70cc Ø47mm aluminium MHR Replica pour scooter Peugeot horizontal air (ludix, speedfight 3, new vivacity,...)


We recommend that you accompany this high engine with at least : carburetion from 19 to 21mm, flexible mounting admission, adjustment of your variation with rollers and clutch springs, racing exhaust, racing cold spark plug, racing 100 engine oil % synthesis ...

échappement Kit 70cc Ø47mm aluminium MHR Replica pour scooter Peugeot horizontal air (ludix, speedfight 3, new vivacity,...)

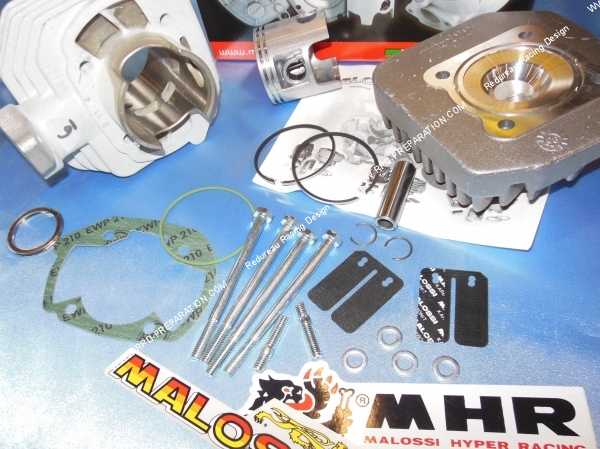

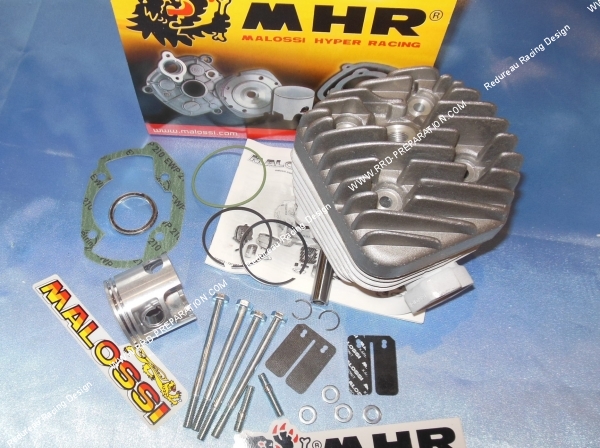

This pack contains :

-Aluminum cylinder Ø47mm 6 transfers with exhaust boosters
-Aluminum cylinder head, with fins, high compression model with tapered chamber polished finish
-Piston bi segments Ø47mm with opening on the rear skirt and side grease nipples
-X2 chrome segments Ø47mm X 1.5mm hard chrome domed
-Piston pin and C clips
-X2 carbon valve slats
-Pack of engine seal
-Exhaust studs
- Studs + cylinder washers
- Stickers
-Notice

montage Kit 70cc Ø47mm aluminium MHR Replica pour scooter Peugeot horizontal air (ludix, speedfight 3, new vivacity,...)

As an option we offer a stage 1 preparation, this preparation is a modification of the channels and the exhaust port by increasing the diagrams and improving the duct, it increases the performance of the cylinder. An improvement to the piston and the bottom of the skirt is also included in this modification. Allow a little extra time for this preparation!

In addition to this, you need to know more about it.

Mounts on :



ludix blaster

ludix 2

ludix 2 trend

ludix 2 elegance

ludix elegance

ludix 2 one

ludix one

ludix snake

ludix snake furious

ludix 2 one two-seater

blaster ice blade

rs12 blaster

radical blaster

R cup blaster

jet force

jet c-tech

jet darkside

jet ice blade

speedfight 3 rs

speedfight 3

new vivacity

And other models ...

Product Details
3112901
20 Items
New product

Data sheet

Diameter (Ø):
47mm
Course
Origin
Matière
Aluminium
Refroidissement
Air
Nombre de transferts d'admission
6 transfers
Cylinder head:
Simple tapered
Displacement:
70cc
Nombre de segment
Bi-segment (2 segments)
Lumière d'échappement
To boost (3 lights)
