Kit 70cc Sport Ø47,6mm AIRSAL mono-segment liquid aluminum on SUZUKI scooter (Katana R ZILLION ...)

Here is the 70cc first prize in the Spanish house AIRSAL, the model that we call sports mono-segment! This kit has certainly a cheap yet a good quality and present performance.



In relation to the two-segment model, it will offer more high speed (it feels barely), it is a little lower to be less accurate and solid range. The diagrams are low enough to will pay with a small standard configuration relaxing escape + + 21mm carburetor drive sport.



The finish is not at the top but it is very correct in the price. The plunger is chrome mono-segment model bulging hard, it has side oilers and a little preparation on the transom to improve scan and an end segment of 1mm. The cylinder head is a high-compression chamber is incoming to have good alignment chamber / cylinder and a good performance head gaskets.



The room is a polished hemispheric model. Clearly this cylinder is really a superb price / quality ratio! It will certainly be less effective than MALOSSI MHR, BIDALOT, or Polini ... But there will already very good.



An excellent cylinder accompanied by a carburetor 19 to 21mm for the best, racing exhaust, a racing, new spark plug change, 100% synthetic motor oil ...

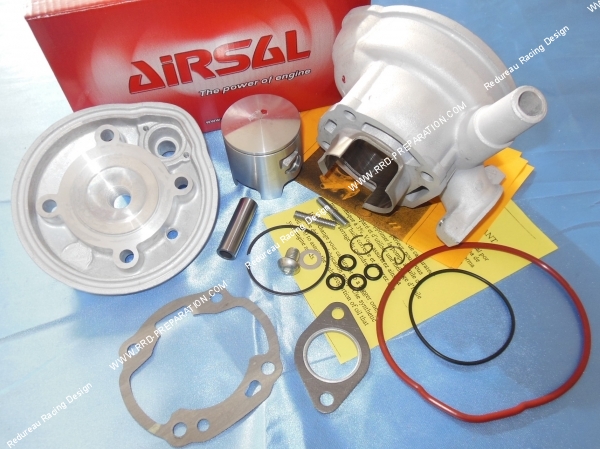

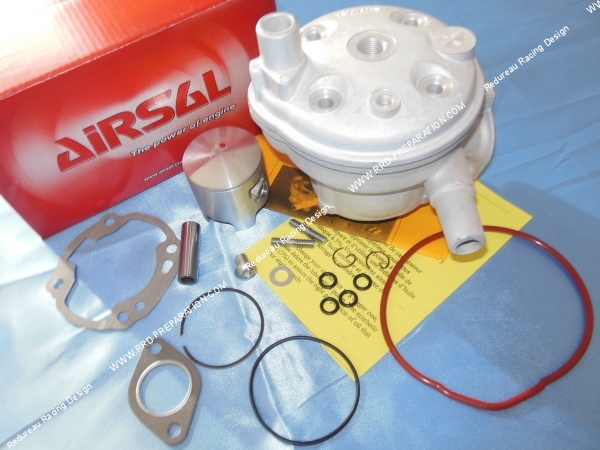

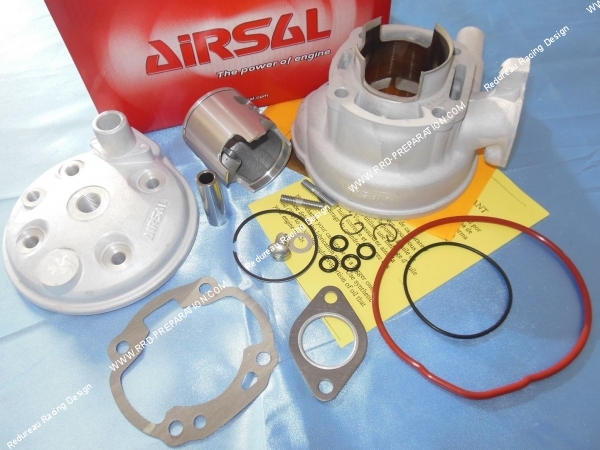

The pack contains:

Yoke -Visserie
-pack Complete joint

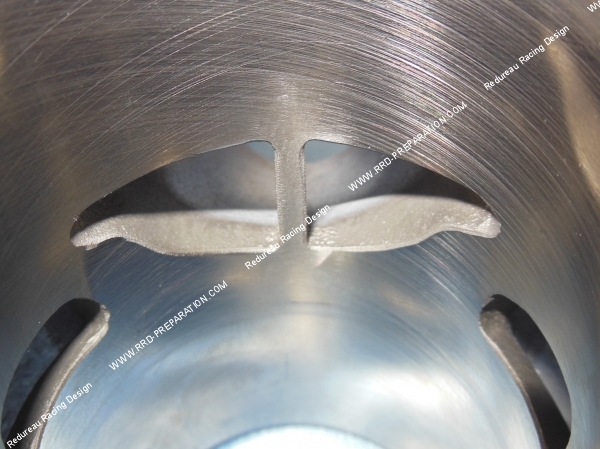

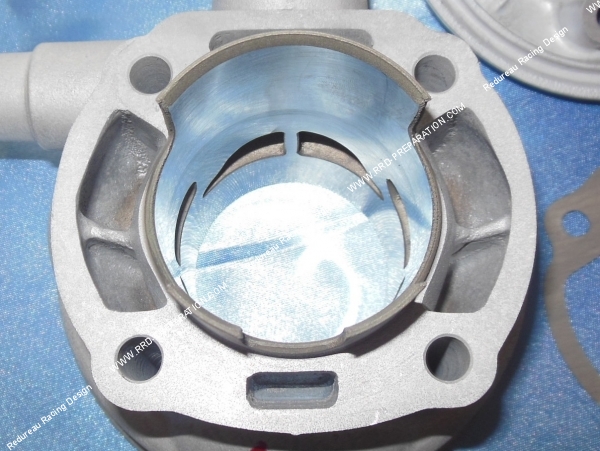

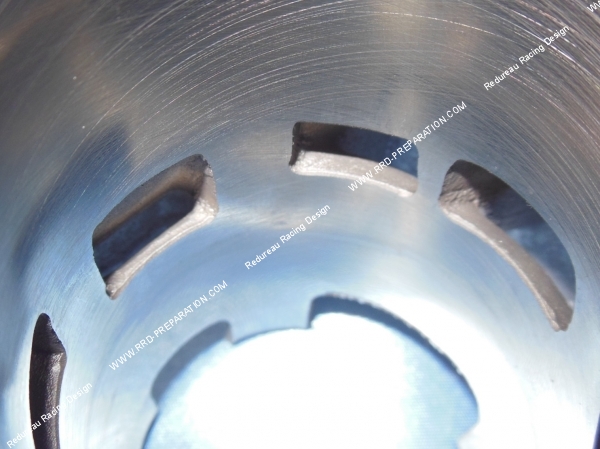

Master cylinder aluminum 5 transfers exhaust with bar
-piston -Segment Chrome mono-segment convex end 1mm thick
-Notice
-Culasse To incoming high compression chamber
-2 Clips piston type G
Axis-of piston Ø12X40mm



Optional we offer a preparation course 1, this preparation is a modification of the channels and the exhaust port by increasing the charts and improvement of the duct, it increases the cylinder performance. Improved piston and bottom skirt is also included in the amendment. Allow a little extra time for this preparation!

Installs on:

- Aprilia Grigio, Haranda, Hot Red, Replica SR, SR 2000R

- Atala Hacker 50 LC, 50 LC Skeggia

- MORINI AH50L

- SUZUKI   AY50LC, Katana LC, LC ZILLION

And other models ...
