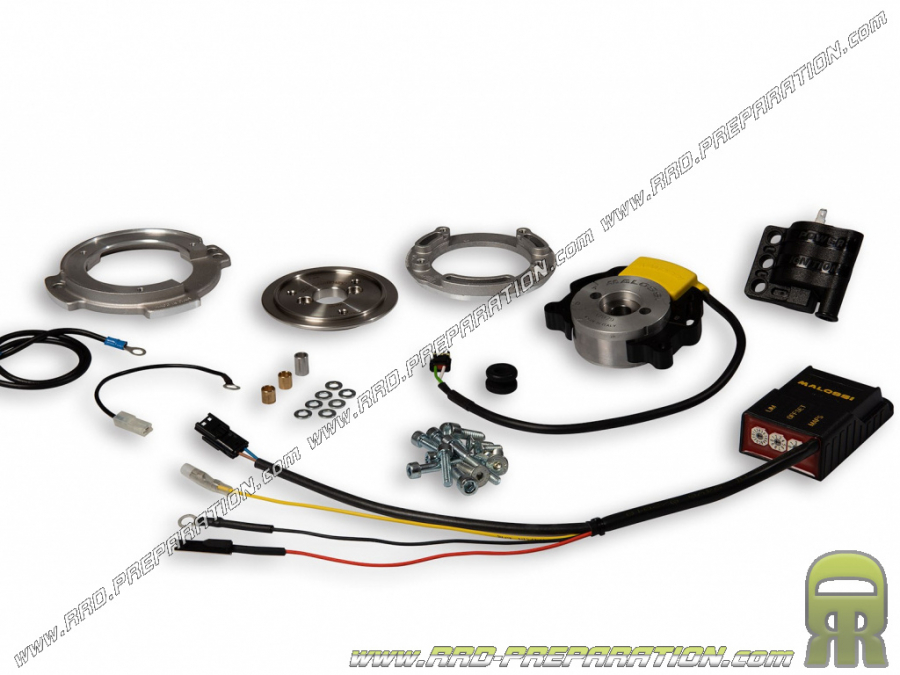

Ignition MALOSSI MHR TEAM 2 internal rotor for quad DRR DRX 90 2T

MALOSSI MHR TEAM 2 competition ignition for quad DRR DRX 90cc 2T. This competition ignition without 12V energy supply allows the greatest performance, variable advance, modification of curve or advance with ease, excellent balance, high spark power, it is currently the best competition ignition of the market!



The MHR Team II ignition is an absolute novelty !!!

It is able to manage several curves at the same time without having to resort to any keys, by a simple click. Allows you to move the selected curve by moving the OFFSET (+ or - 2 °).

The new Malossi ignitions are a concentrate of the highest technologies implemented in scooter competitions. The new internal rotor ignitions have been designed to solve the problem of the technical limits of the original ignition groups: in fact, above 10,000 rpm, these are not able to ensure the necessary stability. in terms of performance, posing major problems in the development of competition machinery, which are sometimes insurmountable.

We have made the electronic box even more immune to interference by developing a microprocessor based on uP STM8 - 8 bits with a calculation capacity greater than 20 MIPS: this in order to guarantee a precision of sparks clearly superior to the previous version!

The MHR Team II range is equipped with a non-remapable variable advance electronic box with 3 trimmers:

the first (MAPS) to determine the advance curve selection
the second (OFFSET) is used to move the selected curve + or - 2 °
the third (LIM), indicated more particularly for 4-stroke engines, allows to vary the intervention of the rev limiter (from 11,500 to 14,300 rpm + limiter excluded)
In addition, it is equipped with 8 pre-installed curves which stand out in:

1 for 4T variable advance motors
6 for 2T motors with variable advance
1 with fixed advance

We have also reviewed other fundamental components such as the high voltage coil, which is now able to provide a maximum discharge voltage> 40 KV for normal engine RPMs of> 3000 RPM and an extraordinary rise time at @ 10bar > 1750 V / uS.

One of the most important novelties is the new rotor-stator group, whose static component has been completely redesigned under the mechanical and electronic profile!

In the assembly instruction, all the graphs are provided in order to be able to adjust the advances of the different motors as well as possible.

Electrical efficiency improved by 20%. Reduced minimum starting speed from 450 rpm to 370 rpm.

The effects of this latter change are reflected in an increase in the voltage supplied to the spark plug, at parity of rotation speed, of significant importance compared to the previous model.



TECHNICAL CHARACTERISTICS

Electric case

Variable advance electronic box equipped with 3 trimmers:

MAPS trimmer: selects the advance curve
trimmer OFFSET: moves the selected curve + or - 2 °
trimmer LIM: variation of the rev limiter (16 possible positions)
8 pre-installed curves:

1 for 4T variable advance motors
6 for 2T motors with variable advance
1 with fixed advance

System based on uP STM8 - 8 Bits with calculation capacity greater than 20 MIPS (Millions of instructions per second).
Reduction of calculation time, better precision and stability of the feed moment.
Hardware architecture with improved immunity against interference.
Wiring temperature class 105 ° C.
Switch for steering wheel timing error compensation of +/- 2 ° with tolerance of 0.5 °
8 advance tables selectable via external switch
Vector advance table consisting of 24 linearly interpolated breakpoints.
Management of non-revolutions via an external 16-position switch.
Soft cut for gradual intervention of the limiter.
15 limiter adjustment positions from 11,500 to 14,300 with 200 rpm step, plus a position excluding the limiter.



High voltage coil

Maximum discharge voltage> 40 KV for engine rotation speeds> 3000 rpm
Maximum coil voltage peak with open gap> 50KV
Rise time at 10bar> 1750V / uS

Rotor-stator group

Reduction of the weight of the stator part by approximately 30%, - 100gr in all.
High permeability monolithic magnetic circuit.
Optimization of the magnetic path.
Reinforcement of the coiled part, with higher thermal class cable and increased wire diameter.
Electrical efficiency improved by + 20%.
Reduced minimum starting speed from 450 rpm to 370 rpm.
Miniaturized waterproof connector, certified IP67, with retention lock.
Automotive class wiring.
Rotor Ø 58 with permanent magnetos in Neodymium.
