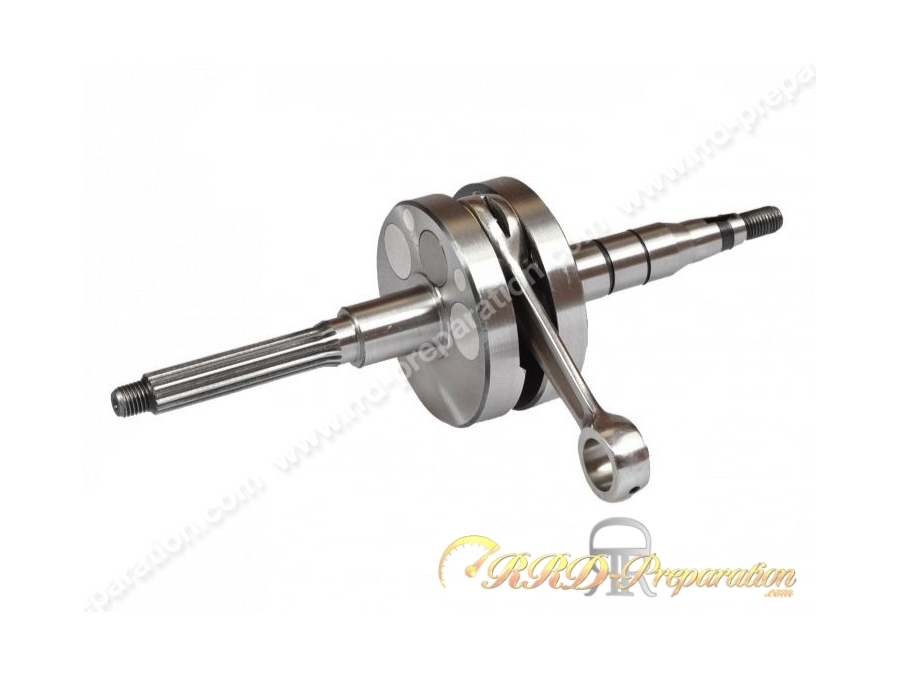

Vilebrequin for motor scooter MINARELLI horizontal air or liquid. Special long stroke 44.8mm (compared to 39.20mm for origin), 85mm long rod (compared to 80mm for origin) and 12mm diameter axis (compared to 10mm for origin), it can only be placed with a kit designed for this purpose such as the SIMONINI racing booster Ø47,6mm special long stroke. Otherwise, you can also place it with a kit for running and normal rod! However you will have to place a hold of + or - 7.5mm (2.4mm for the increase of the stroke and 5mm for the length of the rod), be careful to place a cylinder that has the origin of very low diagrams (125°/185° max) because they will be greatly increased with this stroke. It is made with very high-end materials, has highly reinforced foot bearing and rod head with excellent lubrication passage system.
The rod is also extremely reinforced. However, you will need to do so provide for the machining of motor housings because the long race takes place. Even the masses are calculated in relation to the piston stroke and it is very well balanced.
Gets on:
APRILIA EAAR 51
APRILIA GULLIVER 50 / GULLIVER 50 LC
APRILIA RALLY 50 / RALLY 50 LC
APRILIA SCARABEO 50 2T
APRILIA SONIC 50 (CY) / SONIC 50 GP (CY)
APRILIA SR 50 LC STEALTH / RACING / NETSCAPER
APRILIA SR 50 mod.94-95-96 Air
APRILIA SR 50 mod.94-95-96 H2O
APRILIA SR 50 WWW
ATALA CAROSELLO
BENELLI 491 GT
BENELLI ST
BENELLI 491 RR
BENELLI RACING
BENELLI SP
BENELLI SPORT
BENELLI K2
BRNELLI K2 LIQUID COOLED
BENELLI NAKED 50
BENELLI PEPE
BENELLI LX (until 2004)
BETA ARK AIR
BETA ARK LC
BETA SERIES K
BETA EIKON 50
BETA QUADRA
BETA QUADRA CHRONO 502
BETA TEMPO
BSV AX
BSV JX
BSV GZ
GARELLI GSP 50 2T LC euro 2
ITALJET DRAGSTER LC
KTM K 50
MALAGUTI CENTRO SL
MALAGUTI CIAK
MALAGUTI F 10 (CY)
MALAGUTI F 12 DIGIT KAT EURO 2 (phase 1)
MALAGUTI F 12 PHANTOM 2000
MALAGUTI F 12 PHANTOM LC
MALAGUTI F 15 FIREFOX H2O -
MALAGUTI YESTERDAY
MBK EQUALIS
MBK EVOLIS
MBK FIZZ
MBK FORTE
MBK HOT CHAMP
MBK MACH G
MBK NITRO H2O
MBK OVETTO 50
MBK SORRISO 96
MOTRON STING
MOTRON SYNCRO
MOTRON THUNDER
YAMAHA AEROX H2O 2004-2005
YAMAHA AXIS
YAMAHA BREEZE
YAMAHA JOG JOG Z
YAMAHA JOG R 50
YAMAHA NEO'S 50
YAMAHA VINO
YAMAHA WHY
YAMAHA YE 50 ZEST
And many other models.
