Special for assembly in long race of a 50 PIAGGIO / GILERA or on scooter PIAGGIO / GILERA which make 75cc of origin, ultra reinforced model in long race.

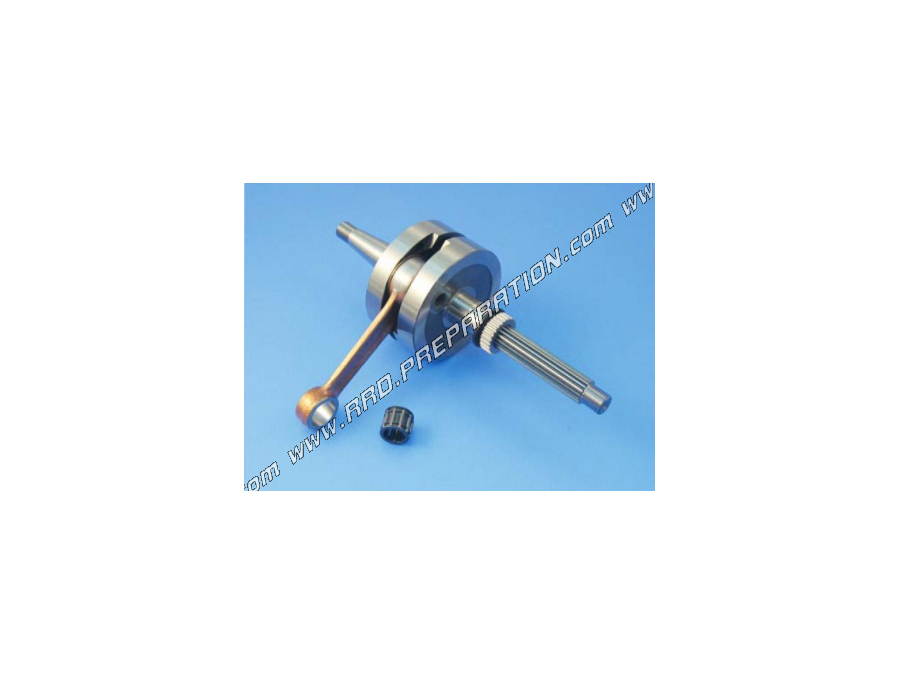

An excellent PARMAKIT Racing brand crankshaft, reinforced with full semie masses, designed for maximum pre-compression with large diameter kits, in 44mm long stroke, 90mm connecting rod, for Ø12mm piston pin, it will therefore increase your displacement (unless you have an original PIAGGIO / GILERA 75cc motor scooter). You will need to assemble it with the kit provided for this purpose. The 90mm connecting rod (long) certainly reduces pre-compression but greatly reduces wear on the piston.It is very well balanced, its bristles (bearing housing) are of original size.
However, you will have to machine your crankcase in order to pass it. It comes with its reinforced needle cage, it also has an ignition key which is already adjusted in relation to the long stroke for more performance, the connecting rod is really reinforced to the maximum and over-lubricated. is specially designed for the large diameter 50mm 85cc kit for long stroke but you can use it on another cylinder with a 12mm axis if you wish, however be careful, the 90mm connecting rod with another kit will surely cause you a problem, you will need therefore install a shim or several base gaskets to perfectly adjust the height of the cylinder.
Connecting rod: 90mm
Stroke: 44mm
Mass width: 75mm
For piston pin: Ø12mm
Comes with: needle cage, belt crown
Reinforced: Yes
Weights: Semi-Full
Connecting rod: mass-machined
Derbi ATLANTIS 50 EU2 2T - 2007/2010 - Scooter
Gilera DNA GP EXPERIENCE 50 - 2003/2004 - Scooter
Gilera EASY MOVING 50 - 1995/1996 - Scooter
Gilera ICE 50 - 2001/2001 - Scooter
Gilera STALKER 50 - 1997/2010 - Scooter
Gilera STORM 50 - 1994/1995 - Scooter
Gilera TYPHOON 50 - 1994/1997 - Scooter
Gilera TYPHOON X / X KAT 50 - 1998/1999 - Scooter
Gilera TYPHOON XR 50 - 2000/2000 - Scooter
Italjet JET SET 50 - 2001/2003 - Scooter
Italjet TORPEDO NEW (2T) 50 - 2001/2003 - Scooter
Piaggio DIESIS 50 - 2001/2001 - Scooter
Piaggio FLY 50 2T - 2005/2010 - Scooter
Piaggio FREE 50 - 1992/1994 - Scooter
Piaggio FREE 50 FL - 1995/2002 - Scooter
Piaggio FREE DELIVERY 50 - 2000/2001 - Scooter
Piaggio LIBERTY 2T - 2006/2008 - Scooter
Piaggio LIBERTY 50 - 1997/2002 - Scooter
Piaggio LIBERTY 50 PTT EU2 2T - 2004/2005 - Scooter
Piaggio LIBERTY 50 RST 2T - 2004/2004 - Scooter
Piaggio LIBERTY 50 SPORT 2T - 2006/2008 - Scooter
Piaggio LIBERTY MOC 50 2T - 2009/2011 - Scooter
Piaggio NRG 50 EXTREME - Scooter
Piaggio NRG MC3 50 AIR - 2001/2002 - Scooter
Piaggio SFERA 50 / BASE - 1991/1993 - Scooter
Piaggio SFERA 50 MAKEUP 2 - 1994/1994 - Scooter
Piaggio SFERA 50 RST - 1995/1997 - Scooter
Piaggio SFERA 75 - Scooter
Piaggio TYPHOON 2T E2 - 2010/2012 - Scooter
Piaggio TYPHOON 5 KAT ARIA - 2001/2004/2010 - Scooter
Piaggio VESPA 50 ET2 - CARBURATORE - 1997/2005 - Scooter
Piaggio VESPA 50 ET2 IE - 1997/2000 - Scooter
Piaggio VESPA PRIMAVERA 50 2T - 2013/2015 - Scooter
PIAGGIO ZIP 75cc
Piaggio ZIP & ZIP 50 BIMODAL - 1994/1997 - Scooter
Piaggio ZIP 50 DISCO - Scooter
Piaggio ZIP BASE 50 - 1992/1996 - Scooter
Piaggio ZIP FAST RAIDER 50 - 1993/1994 - Scooter
Piaggio ZIP FAST RAIDER RST 50 - 1996/1997 - Scooter
Piaggio ZIP RST 50 AIR - 1996/1999 - Scooter
