Reference: 6001072
Reinforced TOP RACING Connecting Rod YAMAHA DTLC, DT LC 125 without valve (without YPVS) before 1984
Complete connecting rod kit for YAMAHA 125cc 2T LC engines fitted to the DTLC, DT LC without exhaust valve YPVS, before 1984.
Banner
Following the many requests that we have on spare connecting rods only for the crankshaft of the KARTING ROTAX MAX engine and the ROTAX 127, 123, 122 engine of a 125cc 2T motorcycle, we are offering the ITALKIT models.

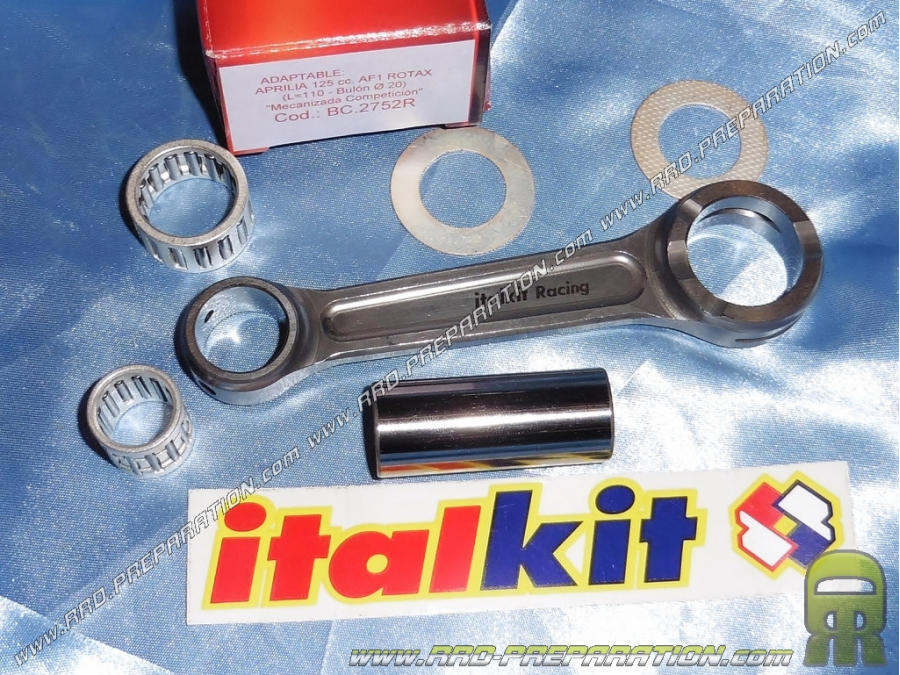

Here it is the model BC.2752R which also exists in version S (cast), this model is therefore well forged, it is a mass-machined connecting rod reinforced with a length of connecting rod of 110mm, its lubrication is improved, the cage of Connecting rod feet is in Ø15X19X20mm treated silver (therefore for piston pin in Ø15mm). The crank pin is Ø20mm by length 49mm, the big end cage is Ø20X26X15mm therefore increased for a better hold, the width of the head is 15mm, treated silver.
Mounts on KARTING 125cc 2T engine, ROTAX 127, 123, 122 engine from APRILIA RS, CLASSIC, TUAREG, ETX 125cc, RED ROSE, AF1, FUTURA 125cc 2T ... Attention, check the size of your connecting rod before purchase !! !!
This image is the moment!
Reference: 6001072
Complete connecting rod kit for YAMAHA 125cc 2T LC engines fitted to the DTLC, DT LC without exhaust valve YPVS, before 1984.
Reference: BC.1731.1S
Rod casting competition reinforced upscale Made in Italy! Length model with 100mm crank pin Ø22mm for axis Ø16mm piston.
Reference: BC.1732S
High-end reinforced casting competition rod Made in Italy! 104mm long model with Ø24mm crank pin for Ø16mm piston pin.
Reference: BC.2255.PX
High-end reinforced cast competition connecting rod Made in Italy! Model length 110mm with Ø22mm crank pin for Ø16mm piston pin.
Reference: BC.2250.PX
High-end reinforced cast competition connecting rod Made in Italy! Model length 105mm with Ø22mm crank pin for Ø16mm piston pin.
Reference: 76018.14
High-end crankshaft engine YAMAHA 125cc 2-stroke 1988 to 2004 kick start only.
Reference: BC2752RR
Bielle competition reinforced casting high-end Made in Italy! Model length 115mm with Ø26mm crankpin for Ø15mm axle Requires a shim under the cylinder on some engines.
Reference: BC.5204
High-end reinforced casting competition rod Made in SPAIN! 105mm length model with Ø22mm crank pin for Ø16mm piston pin for DERBI 125cc GPR 2T.
Reference: 31902
The needle cage provided for your 125cc ROTAX or PIAGGIO VESPA PX.
Reference: AP0944586
Ideal wedge for setting your crankshaft.
Reference: 6001064
Complete connecting rod kit for YAMAHA 125cc 2T LC engines fitted to the DTLC, DT LC with YPVS exhaust valve, from 1984 to 1992.
Reference: 6030096
High-end crankshaft for YAMAHA 125cc 2-stroke engine from 1988 to 2004.
Reference: 6001062
High-end reinforced casting link! Model length 110mm with crank pin Ø20mm for piston pin Ø15mm For motor KARTING and ROTAX 127 motorcycle 125cc 2T.
Reference: AP0293846
Genuine original crankshaft ROTAX 123, 127 and 125 to 125cc Aprilia.
Reference: BUC.2055
Spare pin for 75cc 125cc engine.
Reference: AP0944583
Ideal shim for the timing of your crankshaft.
