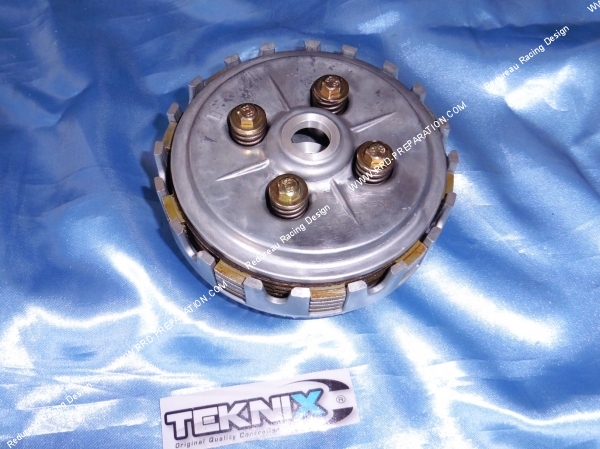

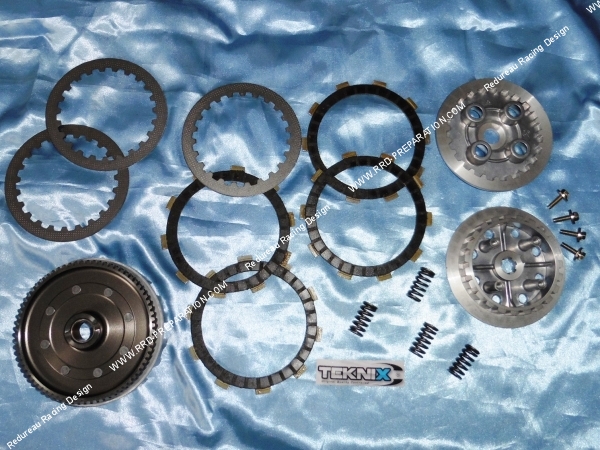

TEKNIX primary transmission kit (drum + discs + springs + pressure flange) CPI SUPERCROSS, SMX, GENERIC (type AM6)

Very good quality, we offer you today this complete embayage kit, including all the accessories and parts presented.

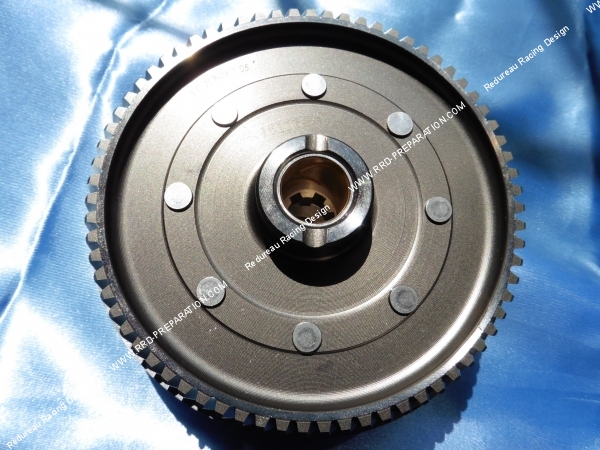

In other words the drum, the reinforced springs 100 Kg, the reinforced discs with spacers and the pressure flange.

The drum and the flange has an increased surface area, these parts are made of aluminum alloy materials with specific heat treatment to optimize cooling during friction and eliminate the risk of heat therefore better heat dissipation.

As a reminder :
-The oil used must be 10W30 special for gearbox with clutch in oil bath, it takes between 0.75 and 0.85L.
-The gearbox drain screw of the minarelli am6 engine tightens to the torque of 1.8mdaN
-The transmission cover screws tighten to a torque of 1.1 mdaN
-The locknut of the pressure plate at a torque of 2.7 mdaN
-The 4 screws of the pressure plate (clutch springs) at a torque of 0.5 mdaN
-Clutch nut with the washer which folds back and the crankshaft nut which maintains the 2 pinions at a torque of 7.5 mdaN

Mounts on :

Mounts on 50cc mono CPI (am6 type engine):
CPI SM
CPI SUPERMOTO
CPI SUPERCROSS
CPI SMX
GENERIC TRIGGER
...
