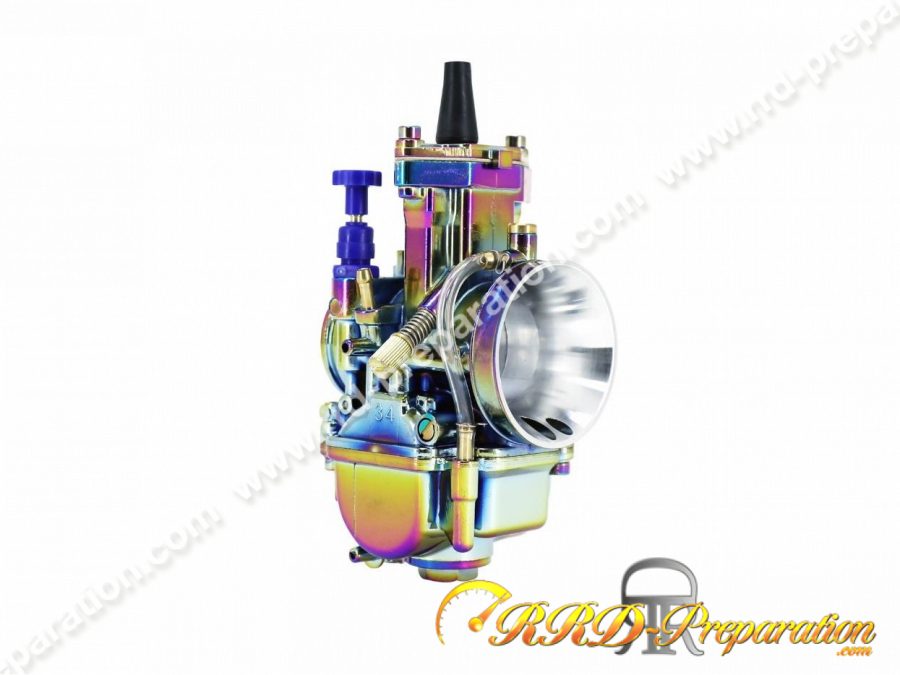

Flexible P2R PWK 34 POWER JET carburettor, without separate lubrication, lever choke

The biggest offered by the P2R house. Here is the PWK carburettor in 34mm with POWER JET with an excellent quality / price ratio, KEIHIN type version. This carburetor features a lightweight, die-cast aluminum alloy body and a clean, smooth finish.

Its intake tulip is specifically machined, reviewed and corrected, in order to always offer more performance. The bushel is flat, this very short carburettor therefore has a very good engine response.

It has a socket for vacuum taps, you don't have to use it. The pre-adjustments (needle / well / jets…) are rather well defined for the prepared engines.

This version has a POWER JET, this is an additional jet at the inlet of the intake bell, it is recommended to block it on configurations with diagrams under 195° / 135°, this type of system is useful for enriching more at high revs beyond 3/4 open, but it will make adjustments very difficult on an engine that does not need it.

Technical characteristics:

-34mm carburettor
-Diameter of the tulip (for air filter): Ø54mm.
-Diameter for flexible sleeve or pipe: Ø40mm.
-Socket for depression: no
- Main jet 130 (+ one of 160 delivered with)
-Secondary jet 42 (+ one of 50 delivered with)
-N68E needle
-Lever starter, pull tab.
