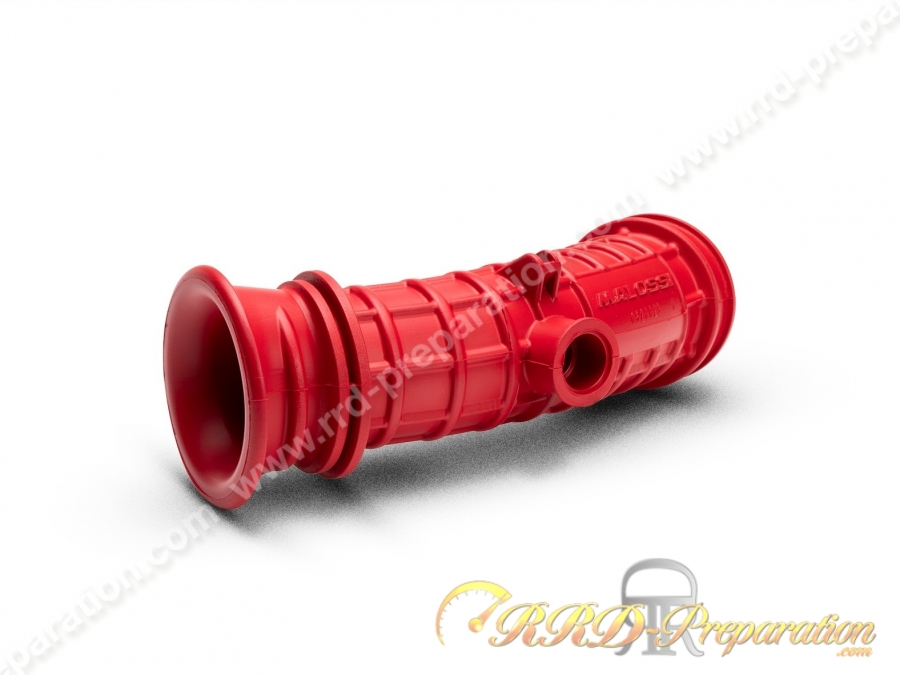

MALOSSI MHR intake pipe for Honda SH 125 maxi scooter (2020 onwards)

Malossi intake funnel

This is a velocity stack that favors a more linear and less curved intake tract, designed to achieve maximum performance at high RPMs without sacrificing mid-range performance. For this reason, it optimizes airflow between the airbox and the throttle bodies, and tangibly contributes to improved engine performance.

The intake horn withstands the constant and intense vibrations to which it is subjected thanks to the characteristics with which we have made it, namely with a SHORE A 75 hardness - a perfect blend between the required resistance properties and those of flexibility - and with ad hoc ribs which help to maintain its shape under load and to absorb impacts and pressures, preventing cracks or breaks.

Main features:

Duct length: 165 mm

Inlet diameter: 36 mm

Minimum duct diameter: 30 mm

Maximum outer diameter: 62 mm

Material: FKM, Shore A hardness 75

Color: red

Mounts on :

HONDA SH i 125 ie 4T LC euro 5 2020->2023 (JF90E)

HONDA SH i 150 ie 4T LC euro 5 2020->2023

HONDA SH i 125 ie 4T LC euro 5+ 2024->2025 (JF90E)

HONDA SH I 150 ie 4T LC euro 5+ 2024-> (KF40E)

HONDA SH i 125 ie 4T LC euro 5+ 2026-> (JF90E)
